In high-volume fiber optic deployments, capital expenditure on equipment is vastly outweighed by operational expenditure. Network operators often spend far more on hourly wages than on the hardware itself. Field productivity ultimately drives project profitability.

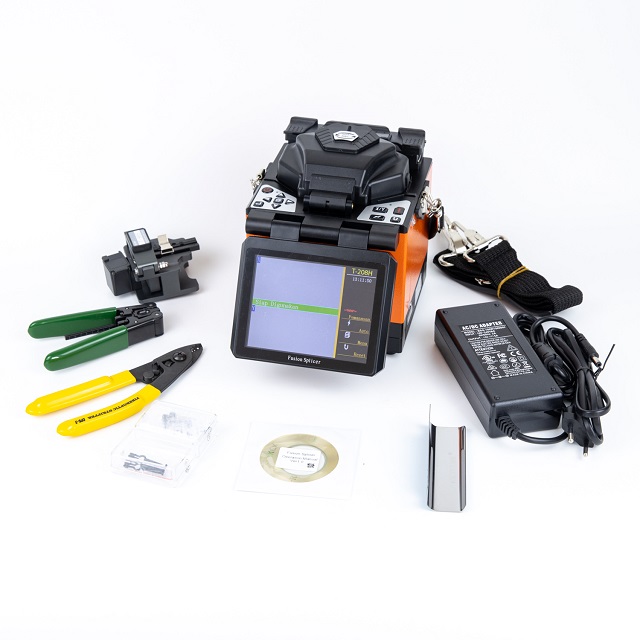

When evaluating a Fiber Fusion Splicer, procurement teams often focus closely on insertion loss and alignment types. However, cycle times directly dictate field productivity. Specifically, splice time and tube heating time determine how many terminations a technician completes daily. Ignoring these crucial speed metrics often leads to unexpected project delays.
This guide breaks down how total cycle time impacts project returns. We explore why the heating phase is the actual operational bottleneck. You will learn how to look past spec-sheet claims. We give you the tools to evaluate true field efficiency effectively.
Total cycle time (splicing + heating) is the most accurate metric for calculating daily labor output, not splice speed alone.
Tube heating time is the primary workflow bottleneck; saving 10 seconds per splice yields substantial labor cost reductions over a project's lifecycle.
Aggressive heating speeds heavily impact battery life; evaluating power management is as critical as evaluating speed.
Real-world field conditions (wind, cold, dust) often render "lab-tested" speed metrics irrelevant if the machine lacks environmental durability.
Technicians do not perform splices in a vacuum. Industry professionals track a much broader metric to measure real efficiency. We call this the "Total Cycle Time." It measures the entire duration from loading the cleaved fibers into the machine to removing the cooled shrink sleeve.
Judging a machine solely on its arc duration gives an incomplete picture. A machine might fuse glass in five seconds. However, if the heater requires forty seconds to shrink the sleeve, the operator remains idle. They cannot prepare the next fiber during this waiting period.
Let us quantify the impact of these idle seconds. Imagine a combined time savings of 12 seconds per splice. Across a 5,000-splice network project, this tiny reduction saves roughly 16 hours of direct labor. You accelerate project delivery significantly. You also reduce wage overhead for the contracting firm.
Procurement teams must adjust their success criteria. The goal is not merely buying the fastest machine on paper. The true objective involves acquiring a tool maximizing reliable, low-loss splices. You want an instrument optimizing what a single technician can complete in an 8-hour shift. Field efficiency relies on continuous workflow pacing.
Understanding equipment specifications requires decoding what splice time actually measures. It defines a specific operational window. This duration begins from pressing "Start" or closing the automated lid. It ends upon the completion of the arc discharge and the final loss estimation.
Different alignment technologies directly impact these recorded speeds. You must align your equipment choice to your network requirements.
Cladding Alignment: These machines operate faster. They typically complete a splice in 5 to 7 seconds. They rely on simpler V-groove mechanical alignment. They align the outer dimensions of the glass.
Core Alignment: This method runs slightly slower. It usually takes 7 to 10 seconds. The machine uses multi-axis motor adjustments. It processes images through a profile alignment system (PAS). Critical network links absolutely require this precision.
Current motor and processor technologies have reached a plateau. Manufacturers have successfully pushed splice times into the rapid 5 to 7 second range. Further fractional reductions in splice time offer marginal business value. Shaving one additional second off the fusion arc barely impacts daily totals. Instead, modern efficiency gains come from improving heating times.
The workflow reality often frustrates experienced field technicians. While splicing glass takes under 10 seconds, securing the joint takes much longer. Shrinking the protective sleeve often takes 15 to 30 seconds. The technician is effectively paused. They sit waiting for the heater to finish before they can prepare the next fiber.
Heater design variations dictate how long this pause lasts. Manufacturers approach thermal management in distinct ways.
Basic models rely on simple thermal conduction. These standard heaters operate slowly. They often require manual intervention. The operator must wait for the sleeve to cool slightly before handling it. This single oven creates a hard limit on continuous production.
Premium models solve this problem through dual, independent ovens. Technicians can heat one sleeve while simultaneously splicing the next fiber. This overlapping workflow effectively eliminates the heating bottleneck. The operator maintains continuous forward momentum.
You must also clarify sleeve material assumptions when reading spec sheets. Claimed heating times usually apply to specific standard 60mm sleeves. Many contractors use thicker or non-standard sleeves. These heavier materials significantly alter actual heat times. A machine claiming a 13-second heat time might need 25 seconds for a reinforced drop cable sleeve.
Heater Configuration |
Average Cycle Time |
Workflow Impact |
Best Application |
|---|---|---|---|
Single Standard Oven |
25 - 40 seconds |
Creates mandatory wait periods |
Low-volume repairs, casual maintenance |
Single Rapid Oven |
15 - 20 seconds |
Reduces idle time slightly |
Standard distribution drops |
Dual Independent Ovens |
9 - 14 seconds (effective) |
Eliminates the heating bottleneck |
High-volume FTTx, ribbon splicing |
Different network architectures demand different evaluation criteria. A machine perfectly suited for a data center might struggle in a muddy trench. Procurement must match the equipment capabilities to the daily deployment environment.
These environments prioritize high volume over perfect precision. They often feature lower critical loss thresholds. Splice and heat times are paramount here. The raw quantity of daily splices dictates the project timeline. Technicians bounce quickly from terminal to terminal. They need immediate heating responses to keep their pace.
When deploying a Metro Fusion Splicer, technicians face distinct challenges. They often work in cramped underground enclosures or bouncing splice trailers. Speed remains important, but the priority shifts. You must balance fast heating times against minimal insertion loss. Long-haul integrity demands reliable core alignment. A ruined metro link costs infinitely more than a slow heat cycle.
Mass fusion introduces heavy thermal demands. Splice and heat times for a 12-fiber ribbon are inherently longer. A typical machine might need 15 seconds to splice and 40 seconds to heat. The efficiency of the machine's thermal distribution becomes critical. Uneven heating melts the outer fibers while leaving the inner fibers loose. Superior ribbon machines prioritize balanced thermal wrapping over raw speed.
Marketing brochures rarely reflect the muddy, freezing conditions of outside plant work. Relying blindly on printed specifications introduces massive operational risks.
You must consider the battery life trade-off. Rapid heating requires immense electrical power surges. A machine heating a tube in 9 seconds demands extreme amperage. It will drain its battery significantly faster than a model taking 20 seconds. You might gain speed but lose half a day of battery autonomy.
Environmental degradation ruins theoretical metrics. Spec sheets reflect perfectly controlled laboratory conditions. Cold winter weather drastically increases heating times. The oven must fight ambient temperatures before melting the plastic. Furthermore, wind and dust trigger constant motor recalibrations. These environmental factors can easily double the actual splice time.
Finally, factor in the cost of re-dos. Speed is utterly irrelevant if the machine produces fragile splices. High attenuation forces technicians to break the glass and start over. A 6-second splice failing quality control wastes exponentially more time than a reliable 10-second splice. Consistency always beats peak speed.
Condition Metric |
Lab Specification |
Field Reality (Harsh Environment) |
Resulting Impact |
|---|---|---|---|
Splicing Speed |
6 seconds |
10 - 15 seconds |
Dust forces extra cleaning arcs and motor alignments. |
Heating Speed |
13 seconds |
25 - 30 seconds |
Freezing temperatures require longer thermal soaking. |
Battery Capacity |
300 Cycles |
180 - 200 Cycles |
Cold cells drop voltage. Rapid heating drains reserves. |
Selecting the right equipment requires a systematic approach. Do not let spec-sheet races dictate your purchasing strategy. Follow these structured steps to evaluate your next fleet upgrade.
Calculate Required Daily Output: Assess the average number of splices your technician handles per day. Determine if standard cycle times meet this quota. If they routinely exceed 100 splices daily, premium dual-heater models justify their cost.
Balance Speed with Battery Capacity: Demand explicit data on "cycles per charge". One cycle equals a splice plus a heat operation. Ensure the battery actually supports a full workday while operating at the advertised fastest speeds.
Verify Automated Workflow Features: Look closely at physical interaction points. Find machines featuring auto-start splicing upon lid closure. Seek out auto-start heating mechanisms. These automated triggers shave cumulative seconds off the manual operation process.
Request Field Demos over Spec Sheets: Never buy strictly off paper. Mandate that procurement tests the machine physically. They must use the exact shrink sleeves and fiber types used in actual deployment. Conduct these tests in outdoor conditions, not climate-controlled offices.
This framework protects your operational budget. It forces vendors to prove their claims in your actual working environment. It also guarantees your technicians receive tools they can actually rely upon.
Splice and heating times are not vanity metrics to ignore. They serve as direct drivers of labor efficiency. They heavily influence overall deployment costs. Every second spent waiting on an oven translates to lost wages and extended timelines.
We recommend shifting your evaluation focus immediately. Stop looking primarily at theoretical splice speeds. Instead, prioritize total cycle time. Value workflow automation highly. Scrutinize the thermal efficiency of the onboard heating elements.
Audit your current field deployment speeds this week. Consult your technicians regarding their actual bottleneck experiences. Then, speak with manufacturers to find models bridging the gap. You need solutions balancing rapid cycle times, battery endurance, and consistent low-loss performance.
A: A competitive modern core-alignment splicer should offer a total cycle time (splice + heat) of 20 to 25 seconds for standard 60mm sleeves. This combined metric ensures technicians maintain a steady, efficient workflow without long idle periods.
A: Splicing uses a high-voltage electrical arc for near-instant melting of the glass. Heating requires sustained thermal transfer to evenly shrink plastic and melt the inner adhesive without introducing micro-bends to the fiber.
A: Not if the machine is calibrated correctly. High-end machines apply targeted, even heat. However, poorly distributed rapid heat can cause uneven shrinkage, potentially stressing the fiber and increasing insertion loss.
A: Yes. Many high-end metro splicers are designed with premium dual-heaters and fast processors, meaning they provide the low loss required for metro rings without sacrificing the cycle speed needed for high-volume work.
