High splice loss isn’t just a technical annoyance; it results in costly truck rolls, network attenuation, and failed certification tests. Every fraction of a decibel matters when validating modern network performance. Pinpointing the exact cause—whether it’s operator error, environmental factors, or degrading equipment—is critical for maintaining profit margins on large-scale deployments. You cannot afford to leave fiber integrity to guesswork when deploying high-speed broadband or long-haul links. Our objective here is clear. We want to help you transition from trial-and-error troubleshooting to a systematic diagnostic framework. By the end of this guide, you will know exactly how to determine whether you need better maintenance practices, a new precision cleaving tool, or a completely upgraded splicing unit.
Acceptable single-mode splice loss is typically between 0.01dB and 0.05dB; consistent readings above 0.1dB indicate a systemic process or equipment failure.
The majority of high-loss events are extrinsic (contaminants, bad cleaves) rather than intrinsic (manufacturing mismatches).
A high-end fiber fusion splicer cannot compensate for a dull or improperly calibrated fiber cleaver.
When evaluating replacement equipment, prioritize automated arc calibration, core-alignment technology, and robust environmental shielding.
Field technicians often debate what constitutes an acceptable splice. Establishing a firm baseline is your first step toward effective troubleshooting. Industry standards, particularly guidelines published by The Fiber Optic Association (FOA), outline strict expectations. Single-mode fiber splices should typically achieve insertion loss between 0.01dB and 0.05dB. Multimode fiber usually ranges from 0.01dB to 0.03dB. Anything consistently registering above 0.1dB demands immediate investigation.
You might wonder why tolerance thresholds are so incredibly tight. Modern high-speed networks operate under stringent optical loss budgets. Long-haul deployments and Passive Optical Network (PON) architectures cannot afford accumulated signal degradation. A cascade of marginal splices eventually weakens the signal enough to cause packet loss, jitter, or complete link failure. Planners calculate every decibel carefully. When your splices exceed these budgets, you compromise the entire network span.
We must also clarify a common point of confusion among splicing crews. There is a distinct difference between the estimated loss displayed on a splicer screen and the actual insertion loss. Modern splicers estimate loss by analyzing camera alignment and digital images of the completed joint. They do not measure light passing through the glass. Skeptical technicians know on-screen estimates can occasionally lie. An Optical Time-Domain Reflectometer (OTDR) measures the actual physical loss. Always trust your OTDR readings over the visual estimation.
Fiber Type | FOA Standard Expectation | Warning Threshold | Common Application |
|---|---|---|---|
Single-mode (SM) | 0.01dB – 0.05dB | > 0.10dB | Long-haul, FTTx, PON |
Multimode (MM) | 0.01dB – 0.03dB | > 0.05dB | Data centers, Enterprise LANs |
When high loss occurs, you must isolate the root cause systematically. We generally divide these causes into two distinct categories: intrinsic and extrinsic factors. Understanding this difference saves hours of frustrating trial and error.
Intrinsic factors relate directly to the manufacturing variations in the optical fiber itself. You cannot change these physical properties. They are baked into the glass during production.
Differences in Mode Field Diameter (MFD): The MFD defines the exact area where light travels through the core. If you splice two fibers having slightly different MFDs, light scatters at the junction. This mismatch creates unavoidable insertion loss.
Core Eccentricity: Sometimes the fiber core is not perfectly centered inside the cladding. Even if your equipment aligns the outer cladding perfectly, off-center cores will not match up.
Cladding Diameter Mismatches: Minor variations in the outer diameter confuse V-groove alignment mechanisms.
Takeaway: Equipment cannot completely eliminate intrinsic loss; the goal is simply to minimize it using advanced alignment techniques.
Extrinsic factors depend entirely on your tools and procedures. These are fully controllable variables. They represent the primary criteria for evaluating your Standard Operating Procedures (SOPs).
Contamination on the bare fiber: Dust, oils from human skin, or residual buffer coating burn during the arc. This creates carbon deposits right across the optical pathway.
Poor cleave angles or lips: A jagged fiber end face scatters light immediately.
Misaligned splicer components: Dirt in the machine forces the fibers out of alignment before the arc even fires.
Takeaway: Extrinsic factors are fully controllable and represent the primary criteria for evaluating your deployment SOPs. Focus your training and maintenance efforts here.

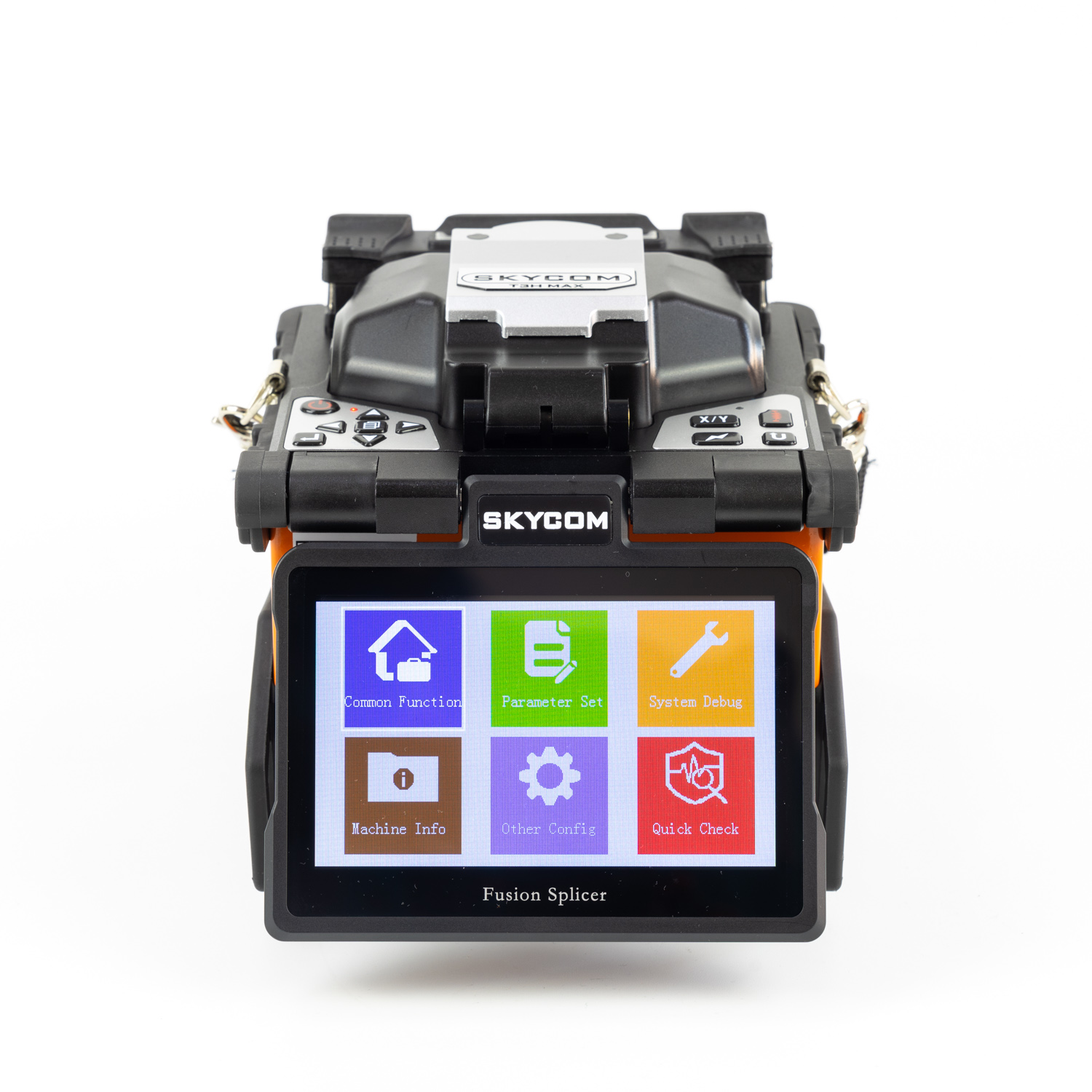

You can buy the most expensive machine on the market, but it will fail if you feed it badly prepped glass. A Fiber Fusion Splicer is only as good as the glass presented to it. Perfect alignment means nothing if the fiber ends resemble jagged cliffs. A good joint requires a pristine, mirror-like end face. Micro-fractures, lips, or angles greater than 0.5 degrees will inherently cause high loss. The camera system might try to compensate, but the physical physics of the melted glass will not cooperate.
Cleaver blade wear represents a massive blind spot for many field technicians. A typical high-precision blade lasts for about 30,000 to 60,000 cleaves. However, this lifespan assumes optimal conditions. Dust, aggressive handling, and improper storage degrade the blade much faster. A dull blade no longer scores the glass cleanly. Instead, it causes microscopic glass shattering. The tool effectively crushes the fiber rather than performing a clean score-and-snap. This shattering introduces micro-cracks spreading deep into the core.
You need a strict evaluation protocol for your preparation tools. Track your cleave counts diligently. When you notice a sudden spike in rejected splices, immediately check the blade. You might simply need to rotate the blade to a fresh position. Sometimes adjusting the blade height resolves the issue. If manual adjustments fail consistently, it is time to upgrade. Investing in an automated precision Fiber Cleaver removes human variability from the prep stage. Motorized blade rotation and automated anvil drops ensure consistent pressure every single time.
Even perfectly cleaved fiber will fail if the splicing unit suffers from poor maintenance. These are highly sensitive optical and mechanical instruments. They degrade gradually under field conditions. Recognizing these degradation patterns prevents widespread network failures.
Electrodes degrade slightly with every single electrical arc.
Manufacturers usually recommend replacing them every 3,000 to 5,000 arcs.
As they age, silica vapor forms carbon buildup on the metal. The tips become blunted and uneven.
Blunted tips lead to uneven heat distribution. The glass melts irregularly, resulting in weak, high-loss joints.
The V-grooves hold the delicate glass strands perfectly still during alignment.
Dust particles, microscopic dirt, or shattered silica glass fragments easily fall into these grooves.
Even a microscopic speck offsets the fiber alignment vertically or horizontally.
While core alignment systems try to adjust, they struggle heavily if physical displacement is too severe. Regular cleaning using 99% isopropyl alcohol and stiff brushes is mandatory.
The machine relies on tiny cameras and LED lights to see the glass.
Contaminated mirrors or lenses confuse the image processing software.
If the camera sees a blurry image due to dust, it calculates a false alignment. It also generates inaccurate loss estimations post-splice.
You must clean the protective glass over the lenses daily to ensure optical clarity.
Many technicians overlook the immediate environment. They assume the machine operates identically regardless of location. The truth is much more complicated. Changes in temperature, ambient humidity, and barometric pressure drastically alter the optimal intensity of the electrical arc. Air density directly affects how electricity jumps between the electrodes. High altitudes thin the air, requiring different power output. High humidity changes electrical resistance.
The solution is straightforward but frequently ignored. You must perform frequent Arc Calibrations. Also known as an Arc Test, this procedure allows the machine to fire a test spark and analyze the melting behavior of the glass. The software then automatically adjusts the current and duration of the spark to match the current atmospheric conditions. It takes less than a minute but saves hours of rework.
Crews often skip arc calibrations due to time pressure. This implementation risk ruins entire deployments. Skipping calibration at the start of a shift guarantees inconsistent results. Moving from an air-conditioned splice trailer out into a humid outdoor trench creates an immediate environmental shock. The arc power that worked perfectly inside the trailer will melt the glass too aggressively—or too weakly—in the humid outdoor air. Always calibrate when your environment changes.
There comes a point where maintenance no longer solves the problem. You need to know when your current splicer sits beyond standard recovery. Signs of terminal decline include failing alignment motors, outdated firmware lacking modern profiles, and excessive downtime for repairs. If you replace electrodes, clean V-grooves, and swap blades but still fail OTDR tests, your core hardware is likely compromised. Upgrading becomes a necessity to maintain project velocity.

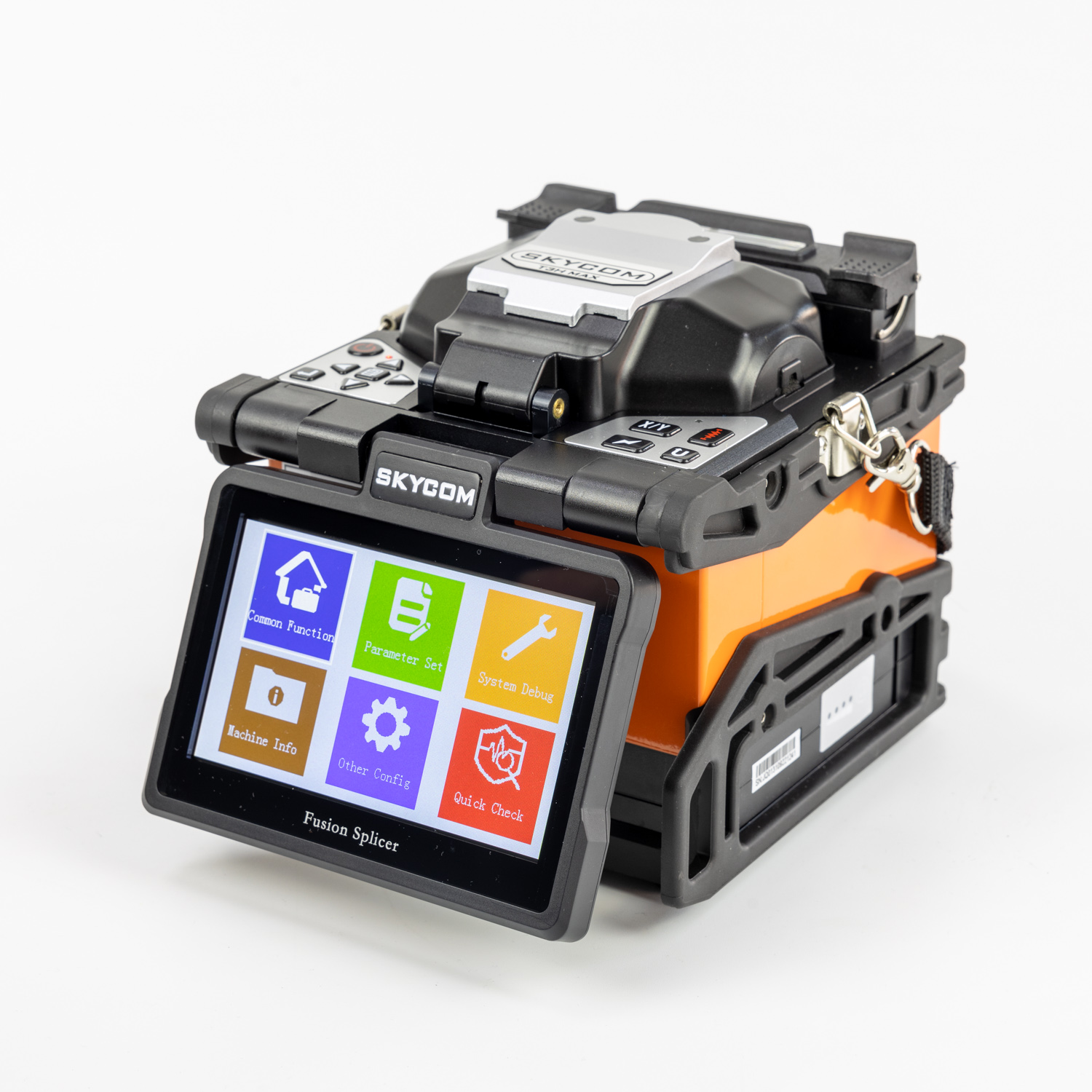

When selecting new equipment, you face a major decision between Core Alignment and Cladding Alignment technologies. Core alignment systems actually look inside the glass to align the microscopic light-carrying core. Cladding alignment simply lines up the outer physical edges. Core alignment units cost more initially. However, they are essential for older networks or varying fiber brands. They keep loss minimal even when intrinsic factors like core eccentricity are present. The performance gains easily justify the initial premium for long-haul crews.
Ruggedization forms another critical evaluation metric. Fieldwork destroys fragile equipment. Look closely at Ingress Protection (IP) ratings. Selecting equipment offering high dust and water resistance proactively reduces V-groove and lens contamination. A fully sealed chassis keeps silica dust away from internal motors and optical pathways. This design feature drastically reduces long-term maintenance burdens.
Finally, prioritize automated workflows. Modern splicing ecosystems remove the guesswork. Look for automatic arc compensation features adapting to wind and weather in real-time. Paired tools represent the future of field operations. Many top-tier machines now communicate via Bluetooth to their corresponding cleavers, triggering automated blade rotations before wear patterns ruin your glass.
Feature Category | Legacy Equipment | Modern Upgraded Systems | Operational Benefit |
|---|---|---|---|
Alignment Type | Fixed V-Groove / Cladding | Active Core Alignment | Overcomes core eccentricity issues. |
Environmental Protection | Basic plastic casing (No IP) | IP52 or higher rated chassis | Prevents optical dirt and motor jams. |
Ecosystem Integration | Manual standalone tools | Bluetooth paired cleavers | Automates blade rotation tracking. |
Arc Management | Manual calibration only | Auto-compensating arc controls | Adjusts to temp/humidity dynamically. |
High splice loss is rarely a mystery; it is a mechanical or procedural failure rooted in fiber prep, equipment maintenance, or environmental shifts. Blaming the glass itself is usually a mistake. You have total control over the extrinsic factors causing the vast majority of network failures. Addressing these variables systematically restores your profit margins and certification success rates.
Audit your electrode arc counts immediately to ensure they remain within safe operational limits.
Inspect your cleaver blade positions and implement a strict tracking protocol for rotation schedules.
Enforce mandatory arc calibration tests at the beginning of every shift and after major environmental changes.
If your hardware consistently fails calibration despite deep cleaning, request a demo for next-generation core-alignment splicers.
A: At the beginning of every shift, whenever the temperature or humidity changes significantly, or after changing electrodes/fiber types.
A: Splicers estimate loss based on visual alignment via cameras. Intrinsic factors (like MFD mismatch) or micro-bends in the splice tray can cause physical loss that cameras cannot detect.
A: While it won't permanently break the splicer, bad cleaves introduce excess silica dust and debris into the V-grooves and electrodes, accelerating the need for deep cleaning and maintenance.
