What You Need to Know Before Investing in a Fusion Splicer?

Before investing in a Fusion Splicer, buyers must evaluate alignment technology types, splice loss parameters, field durability standards, total cost of ownership, and post-purchase technical support to ensure optimal deployment efficiency.

Core Alignment Technologies

Core alignment technology uses high-resolution optics and precision motors to align fiber cores directly, delivering the lowest splice loss for critical network infrastructure.

Selecting the correct alignment mechanism directly impacts the optical performance of your network installations. Core alignment units employ multiple high-magnification cameras and precision V-groove motors to inspect the actual silica core of both optical fibers before arc ignition. This process mitigates concentricity errors commonly found in lower-grade single-mode fibers.

In contrast, clad alignment systems rely on the external cladding geometry of the glass. While clad alignment equipment offers lower upfront cost for short-haul access or FTTx installations, long-haul backhaul and enterprise datacenter links demand the absolute sub-0.02 dB precision provided by advanced core-aligning machinery. Modern engineering practices prefer core alignment due to its adaptability to mixed-brand fiber splicing scenarios.

To better understand hardware configurations, review the core components that dictate hardware performance:

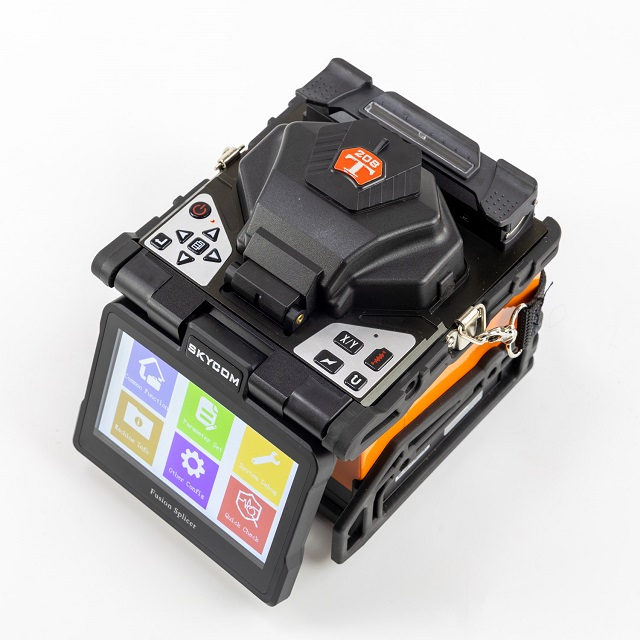

Field technicians working in high-density telecommunication environments often choose robust core-alignment platforms such as the SKYCOM Fusion Splicer T208 MAX to ensure low loss across diverse single-mode and multi-mode installations.

Maintenance Tip: Always clean V-grooves using a lint-free swab moistened with 99% pure isopropyl alcohol. Accumulated silica dust inside V-grooves creates physical axis offsets that trigger arc alignment errors.

Essential Technical Specifications

Evaluating key specifications such as splice loss ratings, heating times, and electrode lifespans ensures optimal optical network performance.

Understanding technical spec sheets requires analyzing how electrical arc parameters translate to field loss numbers. Standard single-mode fiber (G.652) typically requires average splice loss figures below 0.02 dB, whereas polarization-maintaining and dispersion-shifted fibers demand exact arc discharge tuning. Advanced arc power calibration continuously adjusts discharge intensity based on ambient temperature and barometric pressure.

Beyond splice loss, thermal heating cycle times dictate daily job-site productivity. Fast heating ovens that shrink protective sleeves in under 15 seconds prevent field bottlenecks during multi-fiber cable jointing. Battery capacity must also support hundreds of continuous splice-and-heat cycles to sustain remote tower or underground manhole operations.

When outfitting field teams, contractors rely on high-capacity devices like the high-precision optical fiber joining machine to maintain fast heating cycles and long battery life during demanding shifts.

Working Principle: Arc fusion works by applying a controlled high-voltage electrical discharge across two tungsten electrodes. This creates a localized plasma field at approximately 1800°C, melting the silica glass ends so they fuse into a continuous optical waveguide.

Environmental Durability Standards

Ruggedized fusion joiners built with shockproof, dust-tight, and moisture-resistant enclosures prevent costly equipment downtime during harsh field operations.

Field splicing operations rarely occur in climate-controlled environments. Technicians routinely operate in dusty underground utility vaults, exposed aerial platforms, and high-humidity coastal sites. Equipment selection must account for physical protection ratings, anti-shock rubber corner bumpers, and sealed display glass.

Drop resistance is critical for aerial line technicians. Equipment designed to survive drops onto concrete surfaces minimizes work stoppages and costly optical block realignments. Internal cooling systems must balance heat dissipation with ingress protection to keep optics clean in windblown sand conditions.

Environmental Performance Factors

1. Dust Ingress Resistance: Solid gasket sealing prevents airborne particulates from contaminating internal mirrors, lenses, and precision V-groove tracks during field deployment.

2. Moisture and Water Protection: Sealed chassis construction protects delicate high-voltage arc circuits from short-circuiting during high-humidity or rain-exposed field work.

3. Shock and Drop Resilience: Reinforced structural frames absorb shock loads from accidental bucket truck drops or rough transport in utility vehicles.

Safety Tip: Never open the high-voltage electrode chamber in wet or flooded environments. High internal discharge voltages present significant shock hazards when exposed to liquid ingress.

Total Cost of Ownership

Evaluating total cost of ownership involves looking beyond the initial hardware purchase price to consider electrode consumables, battery degradation, and routine recalibration expenses.

Calculating investment returns on optical fiber joining equipment requires evaluating ongoing maintenance and operating costs. While base purchase price is important, consumable costs—such as replacement electrode pairs, high-precision cleaver blades, and spare lithium battery packs—dominate long-term operating budgets over a 3-to-5-year lifecycle.

A low-cost optical joiner with short electrode lifespans or expensive battery replacements quickly becomes more costly than a higher-grade platform. Choosing equipment with easily replaceable wearing parts and accessible diagnostic tools reduces service center visits and maintains job site productivity.

Engineering teams seeking reliable field uptime frequently deploy the rugged core alignment fiber splicing tool to reduce electrode wear and maintain consistent performance across large field teams.

Operating Principle: Modern alignment software uses continuous estimation algorithms. By monitoring core distortion and light refraction through twin cameras during arc discharge, the system calculates estimated splice loss before the operator performs a physical tension test.

Field Operational Workflows

Standardizing fiber cleaning, precise angle cleaving, arc calibration, and automated sleeve baking ensures low-loss splices across field installations.

High-quality fiber joining depends on strict adherence to field preparation standards. Even the most advanced core-alignment platform cannot compensate for poor stripping technique, dirty silica, or improper cleave angles. Fiber preparation must follow a clean, repeatable process to avoid introducing contaminants into the fusion zone.

Cleave angle accuracy directly impacts splice loss. High-precision cleavers must consistently produce fiber end-face angles under 0.5 degrees. Once loaded into the main chamber, the machine performs automated fiber alignment, end-face inspection, arc discharge fusion, and tension testing before heat-shrinking the protective sleeve.

Standard Operating Sequence

1. Fiber Stripping and Cleaning: Strip the primary and secondary polymer coatings using calibrated fiber strippers, then clean the bare glass using 99% isopropyl alcohol wipes.

2. Precision End-Face Cleaving: Insert bare glass into a precision optical cleaver to achieve a clean 90-degree end-face with less than 0.5 degrees of cleave angle error.

3. Arc Fusion and Sleeve Baking: Load fibers into the V-grooves, close the wind hood to initiate automated core alignment and fusion, then slide the protection sleeve into the thermal oven.

Field Tip: Perform an arc calibration routine at the start of every work shift or whenever location altitude and ambient temperature change significantly. This ensures consistent thermal energy delivery across every fiber joint.

Summary of Fusion Splicer Purchasing

Investing in a Fusion Splicer requires balancing alignment technology, field durability, optical performance specs, and total cost of ownership. Core-alignment systems deliver the optical precision needed for demanding backhaul, enterprise, and datacenter networks. Matching these capabilities with rugged shock-resistant housings, long-life tungsten electrodes, and fast thermal ovens ensures consistent field efficiency and network reliability. Evaluating these key criteria enables technical procurement managers to equip field crews with tools that lower installation costs and deliver low-loss optical networks.
