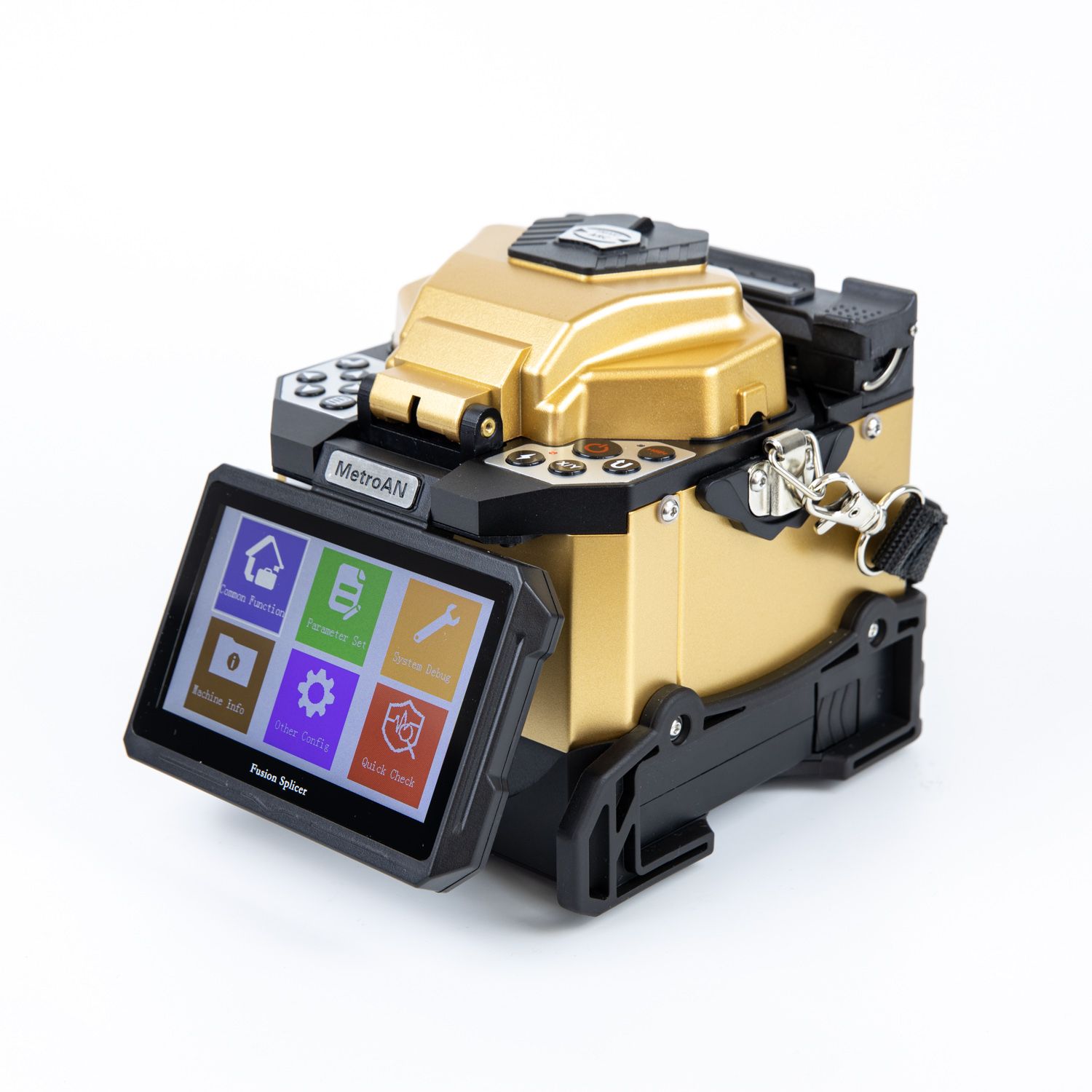

Deploying backbone networks presents strict engineering realities. Long-haul routes, ultra-high capacity links, and massive core counts demand absolute precision from your splicing teams. Splice loss budgets in backbone infrastructure leave zero margin for error compared to standard FTTH or enterprise LAN deployments. Using consumer-grade or mid-tier splicing equipment inevitably leads to compound attenuation. You will face costly network rework, failed audits, and delayed project sign-offs. Procurement teams, technical buyers, and lead engineers need an objective framework to select the right hardware. In this guide, we provide an evidence-based evaluation methodology to shortlist a high-performance Fiber Fusion Splicer. You will learn how core alignment technologies, heating cycle speeds, and environmental durability ratings impact large-scale network deployments. We will also cover data traceability features necessary for modern compliance standards.
Alignment Method is Critical: Core-to-core alignment technology is mandatory for backbone projects to consistently achieve splice losses below 0.02dB (Single-Mode).
Cycle Speed Drives ROI: In high-core-count cables (e.g., 288+ cores), shaving seconds off heating and splicing cycles significantly reduces field labor costs.
Environmental Reliability: Splicers must maintain precision in harsh remote conditions, requiring verified IP-rated dust, shock, and water resistance.
Traceability is Standard: Enterprise deployment requires automated splice data logging and GPS tracking for compliance and network certification.
What separates a standard network from a backbone infrastructure? Backbone deployments span inter-city distances. They cross volatile subsea environments. They connect massive enterprise data centers. These critical links carry terabits of data every single second. Under these conditions, basic connectivity is never enough. Hardware must ensure flawless optical transmission.
Signal degradation compounds rapidly over extreme distances. In a standard access network, a splice loss of 0.05dB remains completely acceptable. It rarely impacts overall link performance. However, this same 0.05dB loss causes severe issues in backbone routes. Accumulated loss leads to complete network failure. It forces network operators to install expensive optical amplifiers far sooner than planned. Every splice point acts as a potential failure node. You must minimize attenuation strictly.
Field technicians face immense technical demands during these deployments. Industry job standards require backbone crews to limit manual intervention during splicing. Operator error must remain near absolute zero. High-stress environments naturally induce fatigue. Technicians cannot rely on manual alignment adjustments when processing hundreds of fibers in a single shift. Backbone crews require equipment designed specifically to automate precision. True backbone hardware removes human guesswork from the equation.
Core-to-core alignment and cladding alignment represent two entirely different solution categories. You must understand the distinction before equipping your field engineers. Cladding alignment uses a V-groove physical structure. This lines up the outer edges of two adjoining fibers. It works well for short-distance networks. However, fiber cores rarely sit perfectly centered inside their cladding. Aligning the outside often leaves the internal light paths misaligned.
Core alignment systems solve this problem using a Profile Alignment System (PAS). High-resolution cameras view the internal core of the fiber directly. Six distinct motors adjust the fiber in multiple axes. They ensure the actual light-carrying cores align perfectly, regardless of cladding imperfections. A dedicated Backbone Fusion Splicer must use this 6-motor core alignment technology. You simply cannot achieve backbone-grade results without it.
Performance metrics validate this requirement. We see typical splice losses of less than 0.02dB for single-mode fiber (SMF) using core alignment. Multi-mode fiber (MMF) routinely drops below 0.01dB. These microscopic loss numbers keep long-haul signals pristine.
Manufacturers rigorously test these performance metrics in controlled lab conditions. Still, trust requires transparency. Field engineers know real-world variables alter perfect laboratory numbers. You should always account for a 0.01dB variance in the field. Poor cleave quality impacts the final burn. Mixing different fiber brands creates slight geometric shifts. An active core alignment system continuously compensates for these field variances better than any V-groove system ever could.
Feature Category | Cladding Alignment (V-Groove) | Core-to-Core Alignment (PAS) |
|---|---|---|
Motor Count | Typically 2 to 4 motors | Strictly 6 motors |
Alignment Focus | Outer glass edge | Internal light-carrying core |
Typical SMF Loss | 0.05dB | <0.02dB |
Backbone Suitability | Not Recommended | Mandatory Requirement |
Error Compensation | Minimal | High (Auto-adjusts for eccentricity) |
High-core-count cables redefine project timelines. Splicing a standard 12-core cable takes minutes. Splicing 144, 288, or 864-core cables requires days of continuous labor. Every wasted second per splice compounds rapidly across a massive deployment. You must prioritize efficiency at scale.
Project managers must establish aggressive but realistic benchmarks for their field crews. Modern splicing units complete an automated core alignment splice in just 6 to 7 seconds. Subsequent tube heating times should hover between 13 and 15 seconds. High speeds keep technicians moving efficiently through dense fiber bundles. A slow machine bottlenecking a fast technician ruins deployment schedules.
Network architects frequently face a major decision node regarding cable infrastructure. Do they deploy standard single-fiber cables, or do they utilize mass-fusion ribbon cables? This choice directly dictates your hardware requirements.
Single-Fiber Processing: This method offers granular control over individual strands. It allows technicians to isolate and perfect every single splice point. Backbone networks often favor this approach for maximum precision.
Ribbon Splicing Integration: Ribbon cables group up to 12 fibers in a flat array. Processing them simultaneously drastically reduces total splice time.
Hardware Specialization: Ribbon deployments require specialized mass fusion equipment. Attempting to adapt standard tools to mass fusion workflows yields inconsistent results and higher attenuation.
You must match your splicer capabilities directly to the cable architecture specified by the network engineers.
Long-haul splicing rarely happens in comfortable laboratories. Technicians work in incredibly hostile conditions. Implementation realities demand extreme hardware resilience. Technicians face high winds on aerial bucket trucks. They endure severe temperature fluctuations in desert or arctic environments. They operate in remote, off-grid locations surrounded by heavy dirt and dust.
You must evaluate equipment based on ruggedization and field readiness. Look for verified drop tests across multiple axes. Demand an IP52 rating or higher for water and dust resistance. Fragile screens and sensitive motors fail quickly when exposed to actual field conditions.
Battery autonomy heavily dictates field efficiency. You cannot plug a machine into a wall socket deep inside a remote trench. Evaluate battery capacity based on continuous splice and heat cycles. Your minimum acceptable baseline should hit 200 to 300 cycles per single charge. This ensures a technician can finish a dense splice enclosure without swapping batteries.
Automated wind protectors provide another critical defense layer. These mechanical features shield the delicate arcing zone. A gust of wind during the arc phase alters the plasma heat distribution. This creates a flawed, high-loss joint. Motorized wind covers prevent environmental contamination and stabilize the arc entirely.
The handover phase of network deployment brings strict security and compliance hurdles. Prime contractors and telecom operators demand absolute proof of quality before finalizing payments. Manual record-keeping no longer satisfies modern enterprise deployment standards. Handwriting loss values introduces human error and potential data manipulation. Automated splice data logging solves this problem permanently.
Modern compliance frameworks require verifiable digital footprints. You should actively look for several key traceability features when evaluating new splicing hardware.
Extensive On-Board Storage: The machine must handle a minimum of 10,000 splice records. It should also store corresponding visual images of the final burn for auditing purposes.
Cloud-Connected Reporting: Wi-Fi or Bluetooth connectivity enables instant data offloading. Technicians push splice reports directly to central servers straight from the field.
Precise GPS Tagging: Integrated location services generate accurate GIS mapping coordinates for every single splice point. This aids future maintenance crews in locating specific nodes rapidly.
These sophisticated traceability features turn a simple hardware tool into a vital compliance instrument. They protect your technicians from false claims and assure the network owner of flawless execution.
Shortlisting the right equipment means looking far past the initial specification sheet. You must evaluate long-term fleet maintenance variables. Machine downtime halts deployment schedules immediately. You need equipment built for continuous, uninterrupted operation.
Electrode lifespan heavily dictates field uptime. Splicing arcs slowly degrade the metal electrodes. Compare machines offering 3,000 arc discharges against models providing 5,000 or more discharges per electrode set. Higher limits mean fewer maintenance interventions mid-project. Technicians stay focused on splicing rather than swapping consumable parts.
Calibration autonomy also keeps crews working efficiently. Atmospheric pressure, humidity, and temperature alter how the plasma arc behaves. Splicers featuring real-time, automated arc calibration reduce manual downtime. They adapt dynamically to environmental changes. The machine adjusts the arc power automatically, ensuring consistent burns without manual technician input.
Always consider the service SLA provided by the manufacturer. You need localized, accessible repair centers. A three-week RMA process can completely derail a tight deployment schedule. If a machine drops and breaks, you need immediate replacements or rapid localized repairs. Assess the support network just as rigorously as the machine itself.
As a next-step action, we highly recommend requesting a side-by-side field demo. Test rental evaluation units under real-world conditions. Put them in the hands of your lead engineers before committing to a fleet-wide procurement. Real-world handling quickly exposes interface flaws and mechanical weaknesses.
Choosing the correct equipment for backbone networks serves as a vital risk-mitigation exercise. You are not simply buying a tool; you are securing the integrity of a massive communication artery. A well-selected unit directly safeguards your strict optical loss budget. It protects your labor margins by speeding up cycle times. Furthermore, it ensures seamless compliance reporting during the critical project handover phase. Do not leave your long-haul deployments to chance. We invite you to consult with a dedicated engineering specialist today. Match your specific project constraints, fiber types, and environmental realities with the optimal hardware tier.
A: The acceptable splice loss is typically 0.02dB or lower for single-mode fiber in backbone infrastructure. Project managers strictly enforce this metric using OTDR testing prior to official sign-off. Exceeding this limit causes compounding attenuation over long distances.
A: Yes, you can. However, doing so requires specific pitch adapters. The alignment precision for single fibers on a ribbon machine may not match the strict tolerances of dedicated single-fiber core-alignment units.
A: Factory calibration typically happens once a year. However, field technicians must perform localized arc calibration daily. This daily routine accounts for immediate atmospheric changes in temperature, pressure, and humidity.
A: Cold weather severely degrades lithium-ion battery performance. Buyers should discount manufacturer ideal condition claims by 20 to 30 percent for winter field operations. Crews should always secure pre-warmed backup batteries for long shifts.
