You might wonder what the acronym means when looking at fiber optic test equipment. It stands for an essential diagnostic tool. Think of it as an optical radar or a medical ultrasound. It sends light pulses into a fiber cable and reads the returning echoes. This creates a detailed visual map of the fiber interior. Knowing the name is only step one. The real challenge for network architects and deployment teams involves translating technical specifications into reliable field performance. You need accurate data to certify links and fix outages quickly.
This guide breaks down the underlying mechanics of an Optical Time Domain Reflectometer. We decode critical trace events to help you understand what the graphs actually mean. We also provide a vendor-agnostic decision framework. You will learn how to evaluate and select the right equipment for specific deployment topologies. Let us dive into the core concepts and operational best practices.
OTDR stands for Optical Time Domain Reflectometer, a diagnostic instrument used to characterize optical fiber from a single end.
Performance relies on measuring two physical phenomena: Rayleigh backscattering (for distance/attenuation) and Fresnel reflection (for physical events).
Procurement decisions hinge on balancing three primary specifications: Dynamic Range, Dead Zones, and Pulse Width.
Accurate certification requires standardized practices, including the use of launch/receive cables and bidirectional testing to eliminate false readings ("gainers" and "ghosts").
Hardware formats range from field-ready handhelds to continuous-monitoring Remote Test Units (RTUs), dictating scalability and operational workflow.
Understanding the basic terminology helps you grasp the physical mechanics behind the tool. Technicians rely on these instruments daily, but knowing the exact science improves your testing accuracy. Let us break down the exact acronym.
Optical: The device operates using light pulses generated by precise lasers. It tests the optical characteristics of glass fibers rather than electrical copper signals.
Time Domain: The system calculates distance based on the exact time it takes for light pulses to travel out and return. Because the speed of light in glass is constant, measuring time directly translates to measuring distance.
Reflectometer: The unit measures the strength of the returning signal. It captures both reflected light and scattered light to build a complete profile of the cable length.
Every OTDR builds its visual graph by capturing two distinct physical phenomena inside the optical core.
Rayleigh Backscattering: This is the natural scattering of light along the fiber length. Think of it like shining a flashlight into a dense fog. Some light naturally scatters back toward your eyes. The device uses this continuous backscatter to calculate the slope of attenuation. This tells you the normal loss per kilometer across the entire span.
Fresnel Reflection: This describes sharp, sudden light bounces. They occur due to abrupt changes in the refractive index of the material. When light passes from glass to air and back to glass, a strong reflection happens. Connectors, mechanical splices, and physical breaks cause Fresnel reflections. The instrument reads these as sudden spikes on the display.
This underlying physics translates into massive operational value. The tool allows technicians to pinpoint exact fault locations instantly. They can measure precise insertion loss for individual splices. Most importantly, teams can certify entire link integrity from a single node. They do not require physical access to both ends of the cable plant. This single-ended testing capability saves countless labor hours during both construction and emergency troubleshooting.
A successful test produces a sloping line populated with dips and spikes. We call this graph a trace. Knowing how to read this trace separates novice installers from expert fiber engineers.
Every feature on the fiber link shows up as an "event" on the screen. We classify them into three main categories.
Reflective Events: These appear as distinct upward spikes on the trace. They usually represent connectors or mechanical splices. The air gap inside these connections causes a strong Fresnel reflection.
Non-Reflective Events: These appear as downward steps without any preceding spike. They represent fusion splices or severe macrobends. Since fusion splicing physically melts two fibers together, there is no air gap to cause a reflection. The event only shows the signal loss.
End of Fiber (EOF): You will see a sudden, steep drop of the signal straight into the noise floor. This indicates a complete cable break or the final termination point of the run.
Event Type | Visual Trace Signature | Common Physical Cause |
|---|---|---|
Reflective Event | Sharp upward spike followed by a drop | Connectors, mechanical splices, physical cracks |
Non-Reflective Event | Sudden downward step (no spike) | Fusion splices, tight bends (macrobends) |
End of Fiber (EOF) | Massive drop directly into the noise floor | Cable termination, severe cut, or break |
Field environments rarely produce textbook traces. Experts must navigate several physical illusions when interpreting graphs.
Ghost Events (Echoes): These are false events. They occur when highly reflective connections in short cables bounce light back and forth. The device reads these secondary bounces as new events further down the line. You can identify ghosts because they show no actual signal loss across the "event" step.
Gainers (False Gain): This is a frustrating mathematical illusion. A splice appears to actually amplify the signal, creating a positive step. This is physically impossible in passive fiber. It happens when joining two fibers possessing mismatched backscatter coefficients. Light moves from a low-scattering fiber into a high-scattering fiber. The sudden increase in backscatter tricks the detector into reading a signal gain.
Resolution: Resolving gainers requires strict methodology. You must perform bidirectional testing. Shoot the fiber from Point A to Point B. Then move to Point B and shoot back to Point A. Use mathematical averaging—specifically the Least Squares Method (LSA)—to combine both traces. This mathematical process eliminates the false gain and proves the true splice loss.
Selecting the right hardware requires careful analysis of your specific network architecture. You cannot rely on brand names alone. You must align three critical optical specifications to your deployment needs.
Dynamic range dictates raw pushing power. It measures the maximum optical loss the unit can analyze from the test port down to the noise floor. We measure it in decibels (dB).
Evaluation Rule: You must always spec a dynamic range 5 to 8 dB higher than the maximum anticipated end-to-end loss of your network. If your calculated link loss budget is 20 dB, you need a unit offering at least 25 to 28 dB of dynamic range. This buffer ensures you get a clean, accurate, and noise-free trace at the extreme far end of the cable.
Dead zones represent the physical "blindness" effect of the instrument. When strong reflections hit the photodetector, it gets overwhelmed. The internal sensors require a brief recovery time. During this recovery distance, the instrument cannot see or measure nearby events.
Event Dead Zone (EDZ): This is the minimum distance required to distinguish two consecutive reflective events. If your EDZ is two meters, you cannot distinctly measure two connectors spaced one meter apart.
Attenuation Dead Zone (ADZ): This is the minimum distance required to accurately measure the actual loss of a specific event following a strong reflection. ADZ is always longer than EDZ.
Buying Context: Short dead zones are crucial for modern data centers. FTTx drop networks also require tight dead zone specifications. These environments feature numerous short patch cords. You need highly optimized hardware to differentiate events clustered closely together.
Hardware testing involves an inherent physical compromise between energy and precision.
The Trade-off: Short pulses provide excellent spatial resolution and extremely short dead zones. However, they lack the raw energy needed to travel far distances. Long pulses pack massive energy to push through ultra-long-haul distances. Unfortunately, long pulses create massive dead zones, blinding the unit for dozens of meters.
When selecting equipment, look for dynamic pulse-width switching capabilities. This feature allows technicians to balance distance pushing power with pinpoint fault accuracy on the fly.
Owning premium hardware means nothing if your field teams execute poor procedures. Tier 2 certification requires strict adherence to international standards.
Network owners face a major risk of vendor lock-in regarding test data. Field technicians generate thousands of trace files. You must ensure your selected hardware natively supports the Telcordia SR-4731 data format.
This standard produces universal .sor files. It serves as the recognized industry standard for trace documentation. Native support ensures absolute backward compatibility. It allows your engineering team to perform cross-platform analysis using third-party desktop software, regardless of which hardware brand captured the initial trace.
Accurate field work relies on rigid standard operating procedures.
Inspect Before You Connect: Technicians must inspect and clean every single fiber end-face before plugging it into the test port. Dirty connectors easily damage the highly sensitive instrument receiver. A microscopic scratch or dust particle will severely skew baseline results and cause massive reflections.
Launch and Receive Cables: Many novice technicians test without a receive cable at the far end. This approach explicitly fails IEC and ITU-T compliance standards. The initial pulse takes time to stabilize, masking the first connector. The unit also cannot accurately measure the loss of the final far-end connector without a known length of fiber following it. You must sandwich the tested link between a designated launch cable and a receive cable to capture true end-to-end insertion loss.
Compliance Action | Standard Validated | Operational Purpose |
|---|---|---|
Save files as .sor format | Telcordia SR-4731 | Prevents vendor lock-in; ensures cross-platform data analysis. |
Use Launch & Receive Cables | IEC / ITU-T | Unmasks first and last connectors to measure exact total insertion loss. |
Perform Bidirectional Testing | TIA / ISO standards | Eliminates "gainers" and calculates true splice loss using mathematical averaging. |
Manufacturers design test equipment in various shapes to suit different environmental demands. You must match the physical form factor to your daily operational workflow.

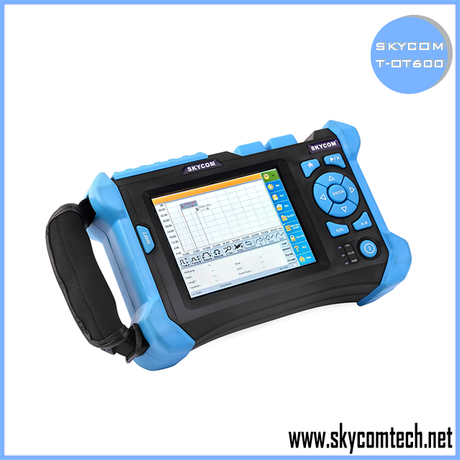

These units fit directly in a technician's palm. They look similar to large smartphones.
Best For: First-line field operations, rapid fault localization, and FTTx last-mile drop testing.
Pros: They are battery-operated, highly ruggedized, and incredibly portable. Technicians can easily carry them up ladders or into tight crawl spaces.
Cons: They feature limited processing power. They often lack the dynamic range required for ultra-long-haul submarine links or cross-country core networks.
These resemble large, heavy laptops or modular lab testing mainframes.
Best For: Core network construction, complex laboratory research, and highly detailed Tier 2 network certification.
Pros: They deliver unmatched optical precision. They pack massive dynamic range modules. Many allow hot-swapping hardware bays for different wavelengths.
Cons: They are bulky, heavy, and command a premium purchase price. They are generally excessive for basic enterprise LAN testing.
These do not have physical screens. They exist as rack-mounted hardware modules permanently installed inside network hubs.
Best For: Critical infrastructure protection, continuous dark-fiber monitoring, and strict Service Level Agreement (SLA) enforcement.
Pros: They automate centralized network surveillance. They shift testing from a reactive maintenance chore into a proactive monitoring strategy. The system instantly alerts operators when fiber degrades.
Cons: They require complex software integration and permanent installation at core nodes.
Understanding the basic acronym is only your foundation. The true value lies in matching the instrument's complex optical parameters to your exact network architecture. Dynamic range, event dead zones, and pulse widths dictate whether you can actually see the faults you are trying to fix.
We strongly recommend avoiding a one-size-fits-all purchasing approach. Do not over-spec massive dynamic range units for short enterprise data centers. Conversely, do not under-spec handhelds for long-haul municipal infrastructure. Prioritize strict software standards compliance, specifically the Telcordia SR-4731 format. Ensure your deployment teams receive hands-on training regarding bidirectional averaging and proper launch cable utilization.
Your next step is practical calculation. Map out your maximum link loss budgets across your typical deployment topologies. Compare those dB numbers directly against the dynamic range specifications of your short-listed hardware. This mathematical approach guarantees you select the perfect diagnostic tool.
A: An Optical Loss Test Set (OLTS) requires access to both ends of the fiber simultaneously to measure total end-to-end insertion loss. An OTDR requires access to only one single end. It provides a visual map of individual events, splices, and distances. This makes it the absolute standard for active troubleshooting, rather than just basic total loss certification.
A: It depends entirely on the fiber type. Multimode installations typically require testing at 850nm and 1300nm. Singlemode infrastructure normally requires 1310nm and 1550nm. If you are troubleshooting live FTTx passive optical networks, you will often use 1625nm or 1650nm to perform out-of-band active testing without disrupting customer traffic.
A: This is called a "Gainer." It is a physical impossibility. Passive fiber cannot generate power. It happens when you join two fibers with different backscatter characteristics. The unit gets tricked by increased scattered light. You must resolve this by shooting the same fiber from both directions and mathematically averaging the results.
