Fiber optic networks are scaling rapidly in both density and complexity today. When these vital communication lifelines experience extended downtime or failed deployments, the financial and operational costs rise exponentially. Network engineers need a definitive diagnostic tool to characterize fiber links, locate faults, and validate installation quality. Without precise visibility into the physical fiber core, troubleshooting quickly becomes a slow, blind guessing game.
An Optical Time Domain Reflectometer serves as this essential solution. Selecting the right equipment and interpreting its data correctly requires deeper technical knowledge. You must move beyond basic specifications. We will explore how to navigate dead zone tradeoffs, understand algorithmic measurement differences, and adhere to strict compliance standards. Read on to master the principles of fiber characterization, fault isolation, and authoritative network certification.
An OTDR acts as an optical radar, using Rayleigh backscattering and Fresnel reflections to map fiber integrity.
High dynamic range is meaningless without matching dead zone resolution; buyers must evaluate both based on their specific network architecture (e.g., short data center links vs. long-haul telecom).
OTDR traces are prone to measurement uncertainties like "ghosts" and "gainers," requiring bidirectional testing and proper launch cables for authoritative results.
For certified compliance, an OTDR does not replace an Optical Loss Test Set (OLTS); the two are complementary tools required by international testing standards.
Understanding fiber testing begins by examining the core mechanics of the equipment. The physical processes inside the fiber dictate how we interpret the final visual data.
Medical ultrasound uses acoustic echoes to map internal body structures. Fiber testing works on a remarkably similar principle. The device injects precise light pulses into one end of a fiber cable. It then measures the time and intensity of the returning light. This continuous stream of echoes creates a highly detailed visual map of the entire fiber core. You can see exactly where splices, bends, and breaks occur.
Two distinct physical behaviors generate the returning light signals. You must understand both to analyze network health properly.
Rayleigh Backscattering: Light naturally scatters as it travels through the glass core. This continuous, low-level scattering allows the device to calculate baseline fiber attenuation. We measure this loss in decibels per kilometer (dB/km).
Fresnel Reflections: Sudden changes in material density cause sharp spikes in returning light. These glass-to-air transitions act like tiny mirrors inside the cable. They typically identify physical connectors, mechanical splices, or catastrophic fiber breaks.
Field technicians follow a strict sequence to ensure accurate baseline readings. Skipping these steps often ruins the measurement.
Establish a clean baseline: You must follow strict "inspect before you connect" protocols. A dirty connector face will blind the sensor and ruin the trace.
Deploy a launch cable: High-energy pulses create an initial blind spot. A launch cable absorbs this energy burst, allowing you to measure the very first connector on the actual network link.
Inject and map: The device fires the laser pulse. It maps the returning signal intensity against a strict timeline.
Convert time to distance: The software uses the fiber's specific Index of Refraction (IoR). It translates the microsecond flight time into an accurate physical distance measurement.
Reading a trace requires distinguishing between actual physical network features and mathematical illusions. A trained eye prevents unnecessary truck rolls and wasted repair hours.
Real network events leave specific signatures on the visual graph. We group these signatures into two main categories.
Non-Reflective Attenuation: You will see a sudden, step-like drop in the trace. There is no preceding spike. This signature indicates macro-bends, cable twists, or high-quality fusion splices. The light simply leaks out or absorbs without reflecting backward.
Reflective Events: You will see a sharp upward spike followed by a drop in signal strength. These map physical connectors or mechanical joints. Different polish types yield distinct reflectance values. For example, standard Physical Contact (PC) connections usually show around -50 dB of reflectance. Angled Physical Contact (APC) connectors perform better, typically showing around -60 dB.
Optical testing occasionally produces false data. You must identify these artifacts to maintain measurement authority.
Ghosts: These are false reflective events. They appear at exact mathematical multiples of an actual highly reflective distance. They happen when echoes bounce back and forth inside the cable. Resolution: Always verify the trace drop. A ghost shows a spike but lacks a corresponding attenuation drop afterward. You can eliminate ghosts by using index-matching gel or thoroughly cleaning launch connectors.
Gainers (False Splice Gains): Sometimes a splice appears to gain signal power. This mathematical illusion happens when you mate fibers possessing mismatched backscatter coefficients or different core diameters. Resolution: Understand that one-way splice testing remains inherently untrustworthy. You must mandate bidirectional testing. Shoot the fiber from both ends and average the two results to find the true splice loss.
Chart: Trace Event Identification Summary | |||
Event Type | Visual Signature on Trace | Common Physical Cause | Actionable Next Step |
|---|---|---|---|
Fusion Splice | Drop without a spike | Fused glass joint | Verify loss is under 0.1 dB. |
Physical Connector | Sharp spike followed by a drop | Mated pair / Glass-to-air transition | Clean face if reflectance exceeds -45 dB. |
Ghost | Spike with no subsequent drop | Secondary echo bounce | Ignore event; clean launch cables. |
Gainer | Step upward (false gain) | Mismatched fiber coefficients | Test bidirectionally and average. |
Interpreting raw backscatter data requires robust mathematics. Furthermore, regulatory bodies dictate exactly how we must report this data to achieve compliance.
Software algorithms translate raw light levels into decibel loss. Choosing the wrong algorithm skews your final report.
Two-Point Method: This approach runs a simple calculation between two manual markers. It works fast but remains highly susceptible to signal noise. It also suffers greatly from dead zone distortion. Avoid this for critical splice evaluations.
Least Squares Approximation (LSA): This provides a mathematically robust model. LSA fits a straight regression line through multiple backscatter data points. It significantly reduces noise-induced measurement errors. Always use LSA when measuring splice loss in noisy environments.
Many technicians mistakenly believe one tool handles everything. We must clarify the compliance reality here. Industry standards from the IEC and ITU-T routinely prohibit certifying total link insertion loss using backscatter data alone.

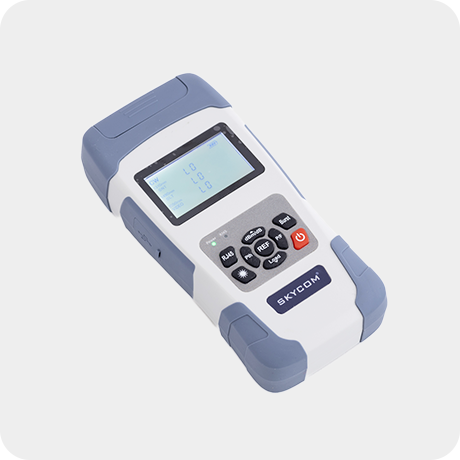

These advanced tools provide brilliant characterization and exact fault location. However, an Optical Loss Test Set (OLTS) is required for absolute end-to-end insertion loss certification. An OLTS uses a dedicated light source and a separate power meter. It measures the true amount of light arriving at the far end. The two tools remain completely complementary.
Trace files need to open smoothly across different software platforms. Standardize your procurement on equipment supporting the Telcordia SR-4731 universal data format. The industry formerly called this the Bellcore format. Using this universal .sor file extension prevents vendor lock-in. It ensures your historical trace data remains readable even if you switch hardware manufacturers a decade later.
Buying the most expensive unit rarely guarantees the best results. You must match the hardware specifications to your exact physical topology.
Dynamic range defines the maximum optical loss the sensor can analyze. When the signal drops below this threshold, it vanishes into the background noise floor. This specification directly dictates your maximum testing distance.
Evaluation Rule of Thumb: Never buy a unit matching your exact network loss. Always select a dynamic range spanning 5 to 8 dB higher than the maximum expected end-to-end loss. This buffer ensures you receive a clean, highly readable trace at the extreme far end of the link.
Shooting high-power pulses creates temporary blind spots inside the detector. The sensor gets overwhelmed by initial reflection energy. You must evaluate two separate dead zone metrics when buying an OTDR.
Table: EDZ vs. ADZ Comparison | ||
Dead Zone Type | Definition | Practical Impact |
|---|---|---|
Event Dead Zone (EDZ) | Minimum distance to distinguish two consecutive reflective events. | Determines if you can see two closely spaced patch cords in a dense data center rack. |
Attenuation Dead Zone (ADZ) | Minimum distance required after a reflection to measure a non-reflective event accurately. | Determines if you can measure a fusion splice located immediately after a dirty connector. |
Implementation Reality: You always face a physical tradeoff here. Shorter pulse widths yield better resolution and much smaller dead zones. However, short pulses pack less energy, so they sacrifice dynamic range. You cannot have maximum distance and maximum resolution simultaneously.
You must match testing wavelengths to your daily operational environment. Using standard single-mode fiber requires testing at both 1310 nm and 1550 nm. Bends affect these wavelengths differently, helping you diagnose macro-bends. If your team performs live-fiber maintenance, you need hardware equipped with 1625 nm or 1650 nm filtered ports. These specific wavelengths test the physical glass without disrupting the active customer traffic running at lower wavelengths.
Hardware designs vary wildly based on deployment scenarios. Select a physical form factor matching your technicians' daily workflow.
Benchtop/Full-Feature Units: These massive units deliver maximum dynamic range and immense processing power. Manufacturers design them for laboratory settings, intensive R&D, and long-haul core network commissioning.

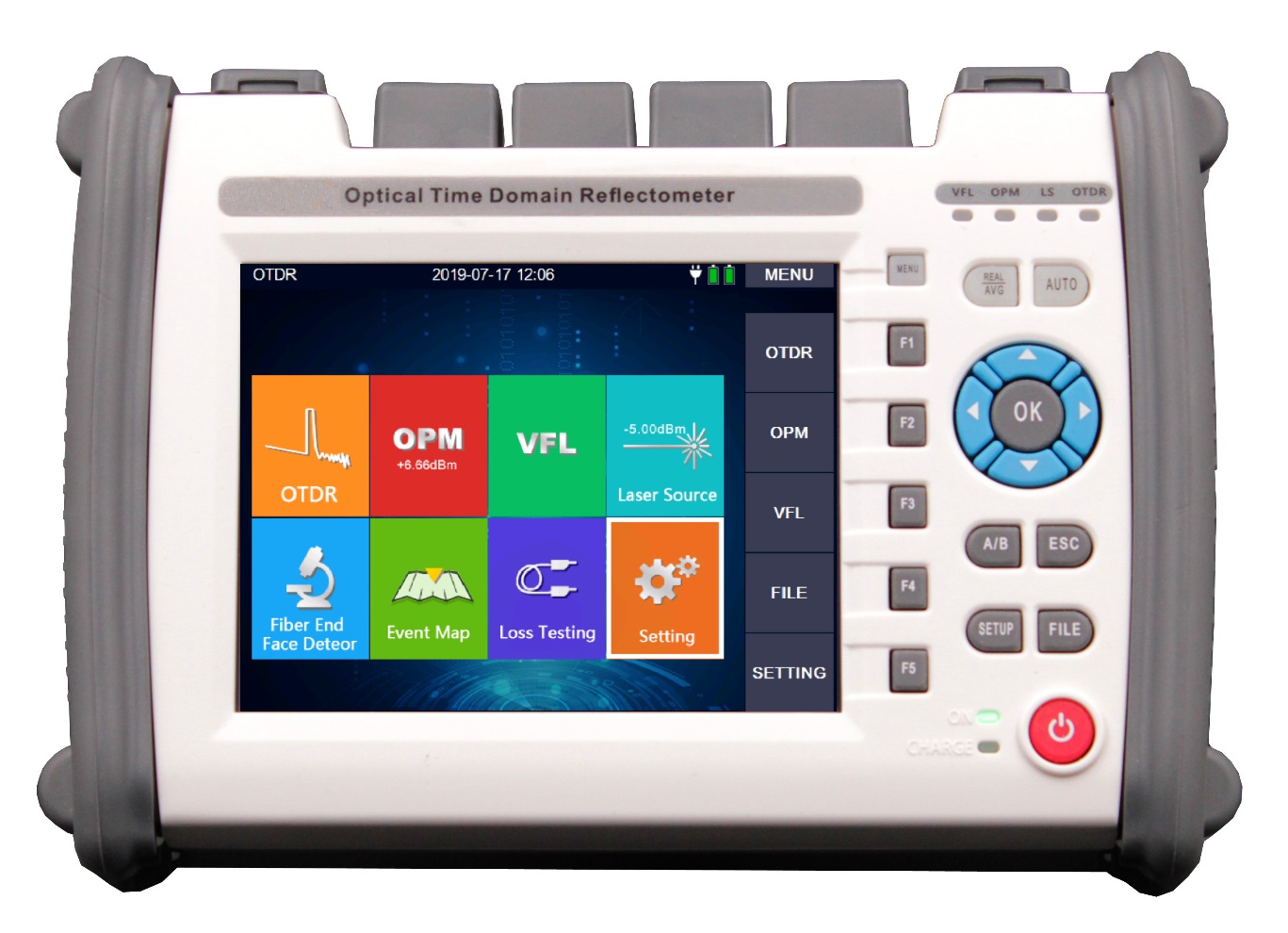

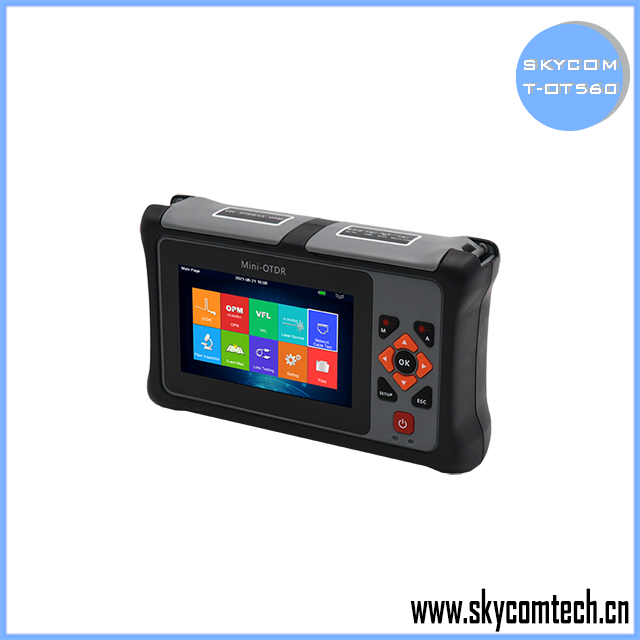

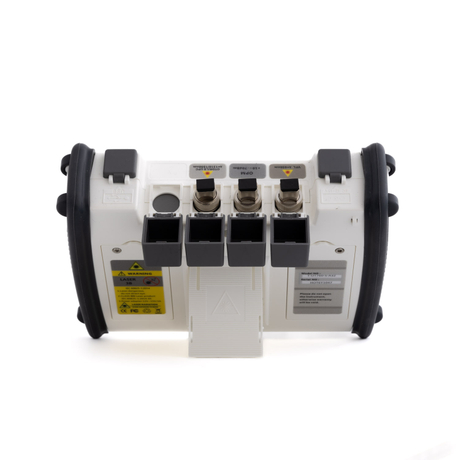

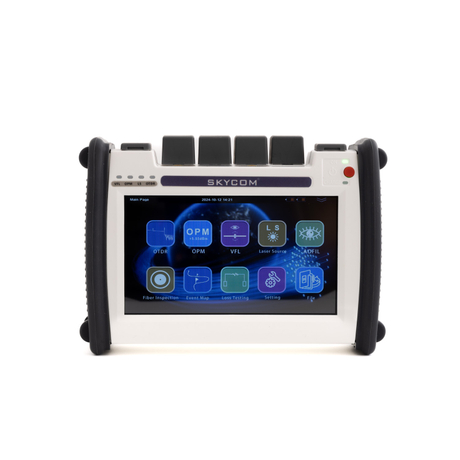

Hand-held & Field Units: These feature ruggedized, battery-optimized form factors. They perfectly suit rapid field deployment, local fault-finding, and FTTH (Fiber to the Home) rollouts. They prioritize portability over extreme distance.
Embedded/Rack-Mounted (RTUs): Technicians integrate these into Remote Fiber Test Systems (RFTS). They sit inside data centers for continuous, automated dark fiber monitoring. They instantly trigger alarms upon detecting cable degradation.
Software advancements save countless hours of manual labor. Look for these specific capabilities during procurement.
PON-Optimized Testing: Passive Optical Networks use high-loss optical splitters. Standard pulses bounce off these splitters blindly. PON-optimized models feature specialized pulse sequences capable of testing cleanly through 1x32 or 1x64 splitters.
Live Fiber Detection: Technicians often unplug active traffic by mistake. Hardware filters block standard telecom wavelengths but allow out-of-band testing at 1650 nm. You can characterize the line safely while data continues flowing.
Automated Event Detection (Smart Mapping): Traditional wave traces confuse junior technicians. Smart mapping utilizes software overlays. It fires multiple pulse widths automatically and translates complex waveforms into simple, icon-based linear maps. It turns a squiggly line into a clear graphic showing a connector, a cable, and a break.
Shortlisting Logic: Base your equipment selection entirely on the physical topology of your network. Measure your average link distance, optical splitter usage, and splice density. Translate those specific needs into hard Dynamic Range and Dead Zone requirements.
Implementation Strategy: Factor in long-term software compatibility by demanding Telcordia standard support. Acknowledge the absolute necessity of using launch cables daily. Finally, commit to pairing backscatter testing with an OLTS to achieve strict Tier-1 and Tier-2 compliance.
Next-Step Action: Audit your current testing procedures immediately. Identify whether "gainers" or false ghost readings currently impact your maintenance times. Evaluate whether your team justifies an upgrade to automated, multi-pulse smart mapping technology to reduce human error.
A: An OTDR uses backscattered light from one end to characterize the fiber, locate faults, and measure distance. An OLTS uses a separate light source and power meter at opposite ends to measure the absolute total insertion loss of the link. Standards require an OLTS for total loss compliance.
A: High-power laser pulses overwhelm the sensor initially, creating an Event Dead Zone at the starting bulkhead. A launch cable acts as a spacer. It absorbs this blind spot, allowing the device to accurately measure the loss and reflectance of the very first connector on the actual network.
A: A dead zone occurs when strong Fresnel reflections temporarily blind the internal photodetector. The sensor needs time to recover its sensitivity. While you cannot eliminate dead zones entirely due to the physics of light, you can minimize them by selecting shorter pulse widths on your device.
A: Choose short pulse widths for high resolution on short links. This minimizes dead zones so you can detect closely spaced patch cords. Choose long pulse widths when testing long-haul networks. Long pulses inject more energy, increasing the dynamic range needed to reach the far end of the cable.
A: A gainer is a mathematical illusion where a splice appears to increase signal power instead of losing it. It happens when mating fibers possess different backscatter coefficients. You fix this by performing bidirectional testing. Measure the splice from both ends of the cable and average the two results.
