Fiber optic networks form the backbone of modern global communications. Maintaining these fragile glass strands demands absolute precision from field technicians. Misinterpreting network integrity carries massive operational risks. Failing to accurately locate faults wastes expensive materials, extends network downtime, and jeopardizes critical service level certifications. You simply cannot afford guesswork when managing high-capacity light transmission.

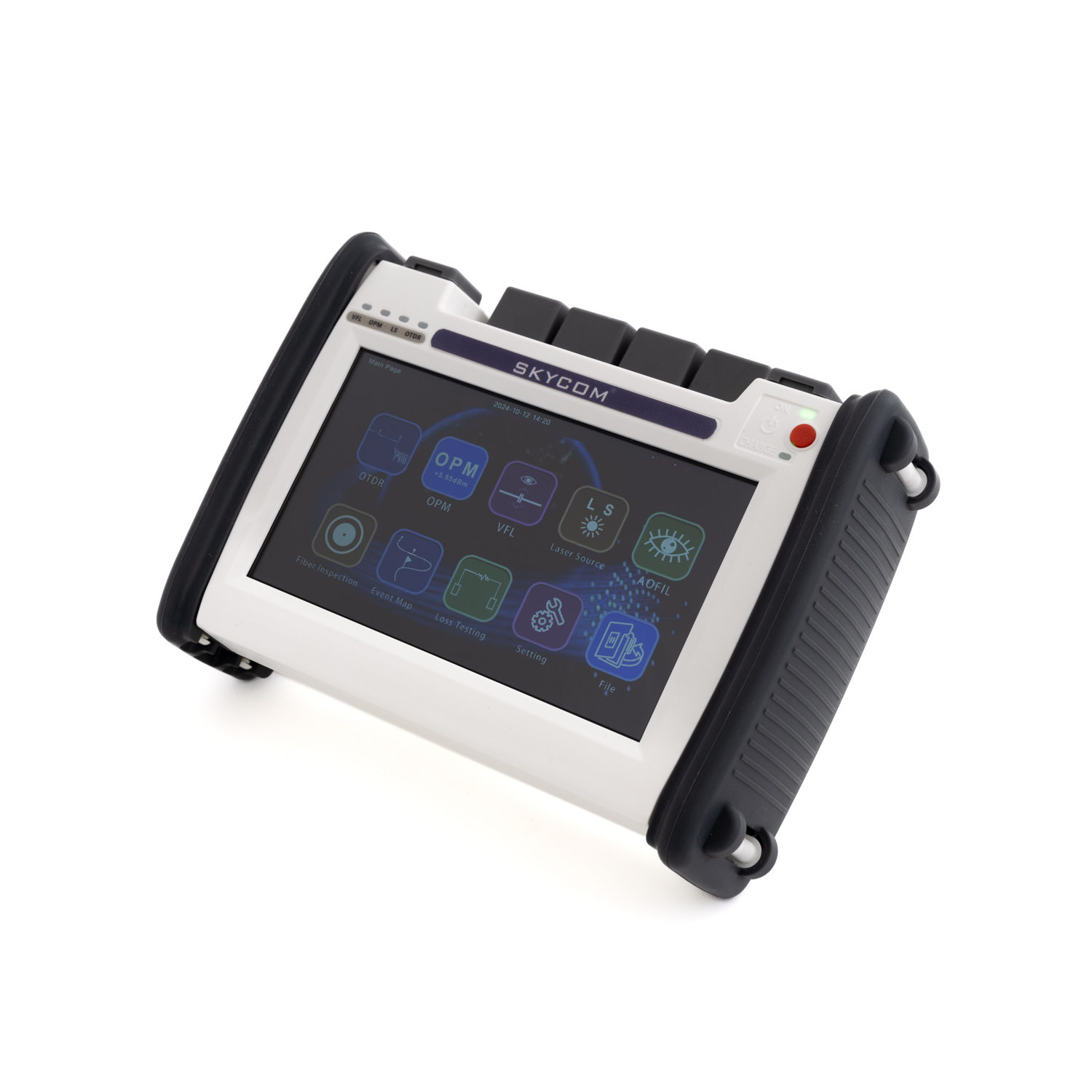

To eliminate this uncertainty, you need an Optical Time Domain Reflectometer. This highly specialized testing instrument remains the only tool capable of pinpointing exact fault locations and their specific causes. It achieves this through advanced backscatter and reflection analysis. The device sends light pulses down the fiber core and measures the returning signals to map the entire physical link.
We will explore a standardized, practical methodology for setting up, executing, and reading tests accurately. You will learn how to configure optimal parameters for varying environments. We will also outline essential technical considerations for evaluating field-ready testing equipment today.
Proper configuration of pulse width and distance parameters is a mandatory trade-off between trace resolution and dynamic range.
Launch cables are critical for bypassing Event Dead Zones (EDZ); a standard rule is using a launch cable length roughly 10% of the total tested link.
Blindly relying on OTDR "Autotest" functions introduces measurement uncertainty; manual marker placement is required for precise splice and attenuation calculations.
Modern equipment evaluation should weigh integrated modules (VFL, FPM) and adherence to IEC/ITU-T calibration standards to ensure compliance and scalability.
You cannot achieve accurate optical measurements without meticulous physical preparation. Industry data routinely shows 80% of all field testing errors stem directly from contaminated connectors or mismatched testing equipment. Dirt destroys accuracy. A single microscopic speck of dust on a ferrule face acts like a boulder. It blocks light, causes severe back-reflection, and creates phantom events on your measurement graph. Poor preparation costs time and ruins your data integrity.
Before initiating any test, you must assemble the correct hardware. Missing even one component compromises the entire diagnostic process. Here is your required equipment checklist:
A calibrated OTDR unit specifically matching your target fiber type (Single-mode versus Multimode).
Launch and receive/tail cables. These must match the core size and connector polish of your cable plant perfectly (e.g., matching SC/APC to SC/UPC).
High-grade fiber optic cleaning fluids tailored for optical glass.
Lint-free cleaning wipes and specialized optical swabs.
Digital video inspection scopes to verify end-face cleanliness visually before any physical mating occurs.
We must strongly emphasize the role of the launch cable. Test pulses entering a glass core need a physical distance to "settle." When light first hits the front-panel connector, the resulting high-energy reflection temporarily blinds the receiver. This phenomenon creates a blind spot known as the dead zone. Without a sufficiently long launch cable acting as a buffer, this dead zone completely hides the very first connector's insertion loss. Using a launch cable ensures the receiver recovers in time to measure the actual network link accurately.
Testing an optical link requires active decision-making. The instrument relies entirely on the parameters you set. You must balance the need to see fine details against the need to push light across vast distances. Adjusting distance, pulse width, wavelength, and averaging time forms the core of proper configuration.
First, consider your distance and range setup. You should set the display distance to approximately twice the anticipated length of the cable run. If you expect a 5-kilometer run, set the range to 10 kilometers. This deliberate over-extension allows the baseline noise floor to display clearly after the fiber ends. It gives you visual confirmation of the actual end-of-fiber break.
Next, you face the pulse width trade-off. This parameter dictates how long the laser stays on during each burst. It defines your testing capabilities.
Pulse Width Type | Typical Duration | Advantages | Disadvantages |
|---|---|---|---|
Short Pulse | 10 - 30ns | Delivers high resolution. Ideal for identifying closely spaced events in short links. | Lacks sufficient energy to travel long distances. Poor dynamic range. |
Long Pulse | 100ns - 1µs+ | Pushes more light for long-haul testing. Offers excellent dynamic range. | Widens dead zones significantly. May merge adjacent fault events on the graph. |
Wavelength selection plays an equally critical role. You must test across multiple wavelengths to expose different fault types effectively. For multimode fiber baselines, standard practice dictates testing at 850nm. For single-mode fiber, test at both 1310nm and 1550nm. Using both single-mode wavelengths allows you to compare the traces. This comparison accurately identifies macrobends, which react differently depending on the specific frequency.
Finally, configure your averaging time. A single pulse reflects very little light. Taking 16 to 64 averages significantly improves the signal-to-noise ratio. Running the test for 15 to 30 seconds continually overlays the returning data. This process smooths out random background noise. It yields a much cleaner, more reliable trace for your final analysis.
Executing the test demands a systematic approach. Rushing the process introduces variables complicating your final analysis. You must build a reliable foundation before connecting to the live network patch panel.
Establishing the baseline represents your first mandatory step. Run a quick reference test entirely on your launch cable before connecting it to the primary link. This verifies instrument health. It confirms your connectors are clean and your launch cable remains undamaged. Skipping this step often leaves technicians chasing ghost faults actually originating inside their own test leads.
Once you verify the baseline, you begin executing the trace. Connect the launch cable to the network patch panel carefully. Many technicians simply press the "Autotest" button and walk away. We warn against heavy reliance on this automated feature. The machine’s algorithm often mischaracterizes false reflections or slight physical bends as hard fusion splices. Automated features provide a decent starting point, but they never replace human analytical skills.
Manual marker placement actively reduces measurement uncertainty. You must control the cursors yourself to extract precise data.
Measuring Length: Place markers A and B just before their respective reflection peaks. Remember a crucial physical reality here. The actual optical fiber glass is typically 1% to 2% longer than the outer cable jacket due to internal stranding. You must account for this discrepancy when physically locating a buried fault.
Measuring Splice Loss: Use the Least Squares method across the splice point. This mathematical approach isolates the localized loss of the joint itself. It separates the splice loss from the fiber's natural distance attenuation. Proper marker placement guarantees your loss calculations reflect reality rather than software estimates.
Reading the visual trace is a fundamental skill for any fiber technician. The graph tells a distinct physical story of the light's journey. To interpret this story, you must first understand the graph axis. The Y-axis represents Amplitude. It shows signal loss or power in decibels (dB). The X-axis represents Distance, mapping how far the light traveled down the core.
As you scan the trace from left to right, you will identify key physical events. Each physical anomaly creates a unique visual signature.
Connectors (Fresnel Reflections): These appear as sharp, highly localized upward spikes. The spike is immediately followed by a slight drop in the overall power level. They occur wherever light passes through an air gap between two mated ferrules.
Fusion Splices: These joints melt glass perfectly to glass. They create subtle, non-reflective step-downs in the trace. You will see the line drop slightly without any preceding upward spike.
Macrobends: Physical stress or tight cable curves cause light to leak from the core. This creates a drop in power worsening at higher wavelengths. It might be glaringly visible at 1550nm but remain completely hidden at 1310nm.
Breaks / End of Fiber: A catastrophic physical break or the final termination point looks identical. It presents as a sudden, sheer vertical drop directly down to the baseline noise floor. No light returns after this point.
You must also learn to identify "Ghosts." High-reflective connectors create secondary, false reflection peaks. The returning light bounces off the OTDR bulkhead, travels back down the fiber, and reflects again. These ghosts always appear at exact mathematical multiples of the original distance. If a bad connector sits at 1 kilometer, its ghost appears precisely at 2 kilometers. Ghosts show no corresponding loss drop after the spike, making them relatively easy to spot once you know what to look for.
Field measurements carry profound operational risks. Misinterpreting traces can result in unnecessary, highly expensive cable replacements. Worse, incorrect data leads to failed SLA audits, breaching customer trust. You must adopt strict mitigation strategies to protect your network investments.
When selecting new diagnostic hardware, technical decision-makers must look beyond basic marketing claims. Evaluating an Optical Time Domain Reflectometer requires analyzing specific technical dimensions determining its usefulness in modern environments.
Evaluation Dimension | Technical Significance | Best Practice Application |
|---|---|---|
Event Dead Zone (EDZ) | The minimum distance required to distinguish two separate reflective events. | Smaller dead zones are critical for dense data center environments where patch panels sit close together. |
Attenuation Dead Zone (ADZ) | The distance required after a reflection to measure a non-reflective event accurately. | Crucial for accurately measuring a fusion splice located immediately after a highly reflective connector. |
Standard Compliance | Ensures device calibration aligns perfectly with global regulatory frameworks. | Mandatory for verifiable reporting. Look for strict adherence to IEC 61746 and TIA/EIA industry standards. |
All-in-One Functionality | Integrates multiple optical testing tools into a single modular chassis. | Prioritize units incorporating Visual Fault Locators (VFL) for quick physical checks and Fiber Power Meters (FPM) to validate total optical loss budgets. |
Dense environments require instruments boasting the shortest possible dead zones. If you manage hyperscale facilities, standard equipment simply cannot separate events spaced only meters apart. Furthermore, choosing standard-compliant devices ensures your test reports hold legal weight during dispute resolutions. Evaluating equipment carefully guarantees your field teams possess the necessary capabilities to maintain critical infrastructure efficiently.
Testing a fiber optic cable successfully requires a deliberate, educated approach. You must constantly balance proper physical preparation with precise parameter configuration. Cleaning your connectors and deploying appropriate launch cables sets the foundation. Adjusting your pulse width and range correctly reveals the hidden realities of your physical plant.
We strongly encourage technicians to master manual trace analysis. Automated diagnostics remain helpful, but they cannot replace the nuanced interpretation of a skilled human operator. When procuring new testing hardware, decision-makers must prioritize tight dead zone capabilities and proven standard compliance. Implementing these disciplined methodologies ensures your networks remain resilient, reliable, and fully certified.
A: A launch cable prevents receiver blinding. The initial high-energy reflection from the bulkhead connector creates a dead zone, hiding immediate events. A launch cable provides a buffer distance, allowing the receiver to recover and capture the very first connector's true insertion loss accurately.
A: EDZ represents the minimum distance required to distinguish two separate reflective events visually. ADZ defines the required distance after a major reflection to accurately measure a non-reflective event, like a fusion splice, on the trace.
A: You should test at both wavelengths for single-mode fiber. Comparing the two separate traces is the standard industry method for isolating physical macrobends from actual fusion splices. Macrobends show higher loss at 1550nm.
A: No. Different core sizes and operating wavelengths require dedicated or modular testing ports. Mixing them causes severe insertion loss, damages connectors, and guarantees highly inaccurate measurement readings across your entire optical link.
