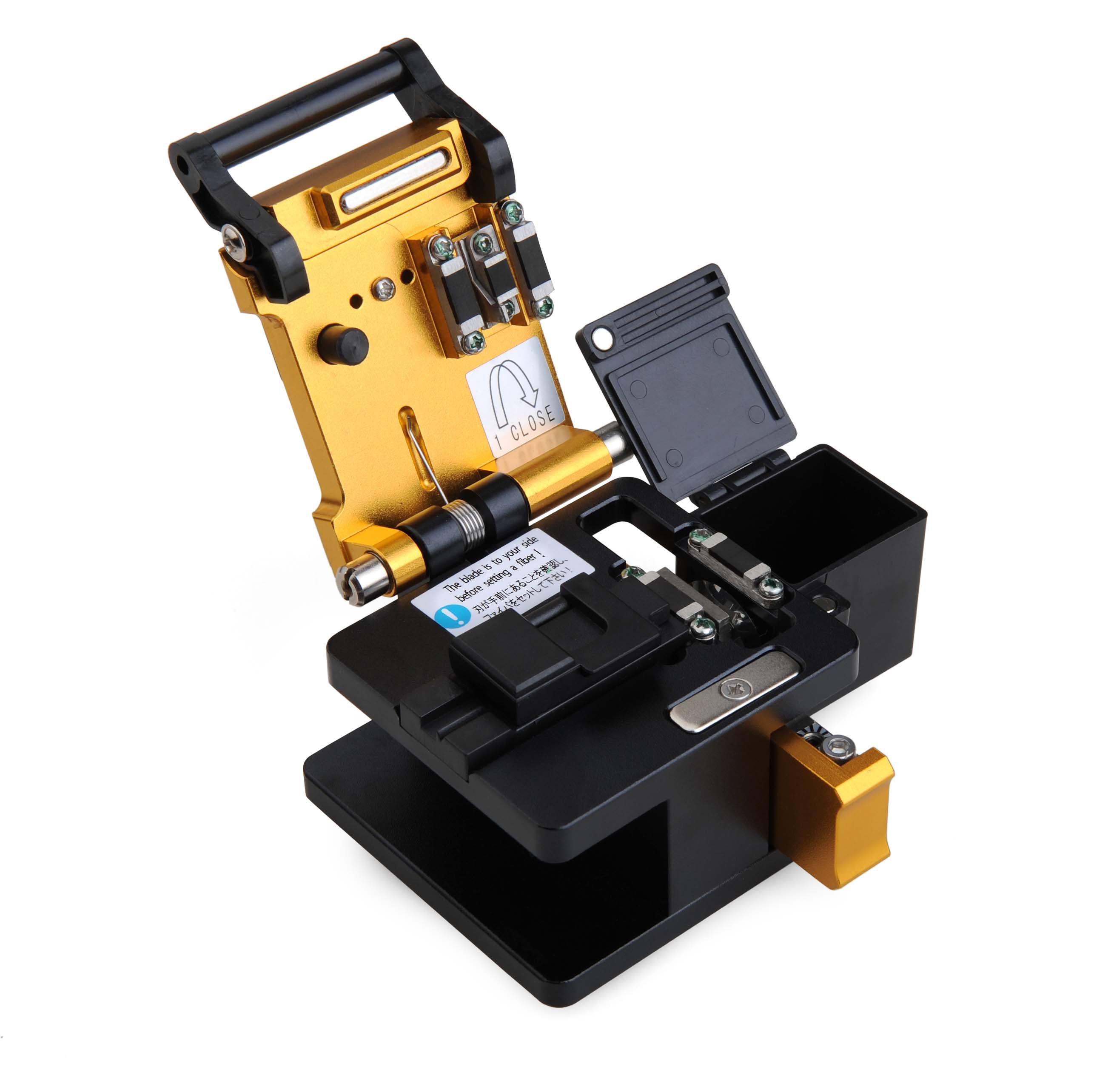

How To Adjust Fiber Cleaver?

Suboptimal cleave angles and core chipping directly inflate splice loss rates. They lead to failed OTDR tests and costly network rework. A misaligned Fiber Cleaver is often the hidden root cause. Field technicians frequently confuse blade dullness with incorrect vertical blade height. You must correctly diagnose the underlying mechanical issue. Proper calibration requires distinguishing between rotational position changes and precise vertical height adjustments.

This guide establishes an enterprise-grade standard for diagnosing, adjusting, and maintaining your equipment. We focus on verifiable mechanical baselines rather than operational guesswork. You will learn how to identify height issues, rotate positions safely, and implement a stringent preventive maintenance routine. Following these exact protocols prevents premature equipment wear. It also protects your high-value optical fibers from unnecessary physical damage.

Key Takeaways

• Symptom-Driven Action: Chipped or broken fibers usually indicate incorrect height; consistently poor angles across multiple cuts indicate it is time to rotate the blade position.

• The 1/4 Turn Rule: Height adjustments should strictly follow a 1/4-turn micro-adjustment methodology to prevent damaging the anvil or crushing the fiber.

• Lifecycle Metrics: A standard blade position yields approximately 1,000 precision cleaves before requiring rotation.

• Handling Constraints: Never use metal tweezers to rotate the blade; use isopropyl alcohol and a cotton swab to prevent microscopic edge fractures.

Diagnosing Cleave Quality: When to Adjust vs. When to Replace

You must understand the specific success criteria for a perfectly prepared optical fiber. A correctly calibrated Fiber Cleaver produces a cleave angle of less than 0.5 degrees consistently. It accomplishes this cleanly. It does not leave pressure indentations on the fiber coating. Modern fusion splicers easily detect bad angles. They reject fibers exceeding this 0.5-degree threshold. You must pinpoint the exact failure mode before turning any screws.

Identifying height issues requires careful observation of the glass end face. You can categorize vertical misalignment into two distinct scenarios:

• Blade too high: The mechanism pushes the fiber up violently. The glass shatters upon impact. You will often see severe scoring marks on the anvil block above.

• Blade too low: The score line remains incomplete. The tool leaves the fiber uncut entirely. Alternatively, it leaves a heavily lipped end face. The glass breaks unevenly under tension.

Sometimes the blade height sits perfectly flush, but problems persist. You must identify positional wear. If you verify the height is flush, yet cleave angles remain high or un-spliceable, wear is the culprit. The specific blade position has exhausted its lifecycle. A single blade spot handles approximately 1,000 cleaves. Once you hit this metric, the microscopic edge dulls. You must rotate the blade to a fresh position.

We rely on the "Bare Fiber Test" framework to diagnose height accurately. You do not need expensive diagnostic tools for this verification. Strip the coating off a piece of scrap fiber. Place this bare fiber directly on the rubber clamping pads. Slowly advance the cutting slider manually. Watch the interaction closely. A perfectly calibrated blade will just barely contact the fiber. It creates a tiny score. It will not visibly lift the fiber off the pad. If you see the fiber rise, the blade sits too high. If the blade passes under without touching the glass, it sits too low.

How to Adjust Fiber Cleaver Blade Height (The 1/4 Turn Method)

Understanding the internal mechanical principle prevents accidental tool damage. Height is typically controlled by an eccentric axis screw. You usually find this screw positioned between two locking screws. Manufacturers often label these locking screws A and B. Rotating this eccentric axis screw changes the vertical height. It moves the blade up or down in a cyclical pattern. It does not move in a straight linear path. This cyclical movement dictates our strict micro-adjustment rules.

We enforce a rigid step-by-step implementation for any height modification. You must execute these steps sequentially.

1. Loosen: Carefully back off the primary locking screws. Do not remove them completely. Just loosen them enough to free the central axis screw.

2. Adjust: Turn the height adjustment screw strictly by a 1/4 turn. You turn it clockwise to raise the blade. You turn it counter-clockwise to lower the blade. This direction varies slightly by manufacturer, so check your specific model manual.

3. Secure & Verify: Re-tighten the primary locking screws. You must secure them before testing. Re-run the bare fiber test. Assess the new height visually.

You should follow the visual flush standard for final verification. The highest point of the cutting edge must sit exactly flush. It must align perfectly with the fiberboard or rubber pads on both sides. A flush blade guarantees a clean micro-score without upward crushing force.

There is a serious implementation risk during the securing phase. Technicians often over-tighten the locking screws. This easily strips the delicate internal threads. You must adhere to standard torque specifications. The industry standard commonly dictates ~0.59 N·m for height locks. Over-torquing permanently damages the tool block.

Rotating the Blade Position: Maximizing Lifecycle Yield

Systematic rotation guarantees scalability and strict cost control. A standard tungsten carbide blade features 16 or 24 numbered positions. Utilizing all positions systematically before full replacement drastically reduces consumable costs. Many technicians discard blades after utilizing only three or four spots. This wastes perfectly functional cutting edges. You must track position changes diligently.

We mandate a highly specific safe rotation protocol. Tungsten carbide is exceptionally hard but surprisingly brittle. It chips easily if handled incorrectly.

First, loosen the central blade fastening screw slightly. You do not need to remove it completely. Next, observe the crucial rule of rotation. You must use a clean cotton swab to push the blade laterally. You push it to the next numbered position on the dial. Never use your fingers. Never use metal tools or screwdrivers. Metal tweezers cause instant micro-chipping on the tungsten carbide edge. A chipped edge ruins every subsequent cut. It forces you to skip positions prematurely.

Securing the blade requires equal precision. Re-tighten the fastening screw carefully. You should use a controlled torque screwdriver if available. The standard baseline for the central fastening screw is 0.98 N·m (or 10kgf-cm). Under-tightening allows the blade to wobble during operation. Wobbling causes erratic angles and shattered cores.

Always perform a post-rotation check. You cannot assume the new position seated correctly. Perform five to ten test cleaves on scrap fiber. Inspect these cuts on your splicer screen. This ensures the new position is seated squarely. It confirms you tightened the assembly securely.

Calibration Nuances for Specialized Optical Fibers

Modern networks deploy various specialized cables. Standard 250µm and 900µm telecom fibers behave predictably. You cut them easily using standard baseline settings. However, specialty fibers possess different physical properties. SSF polymer-coated fibers feature high-strength structural rigidity. This rigidity fundamentally changes the cutting dynamics.

You face a clear adjustment necessity when handling these materials. You transition a standard cleaver to cut heavily coated fibers. The original blade height often fails. It cannot penetrate the tougher cladding efficiently. You must execute a proprietary micro-adjustment. You slightly raise the blade or wheel height. This allows the edge to pierce the tough polymer. It does this without shattering the delicate glass core inside.

We recommend a specific shortlisting logic for diverse fleets. Do your technicians frequently switch between standard SMF/MMF and specialty fibers? Manual recalibration consumes massive amounts of field time. It also introduces constant human error. You should evaluate an automated, motorized unit instead. Advanced models from manufacturers like Fujikura or AFL adjust blade height dynamically. They alter rotation automatically via Bluetooth communication with the splicer. Motorized units prove highly cost-effective when facing constant fiber variations.

Preventive Maintenance and Troubleshooting Matrix

You must recognize the role of debris in false failures. Technicians often tear apart their equipment prematurely. Before making any mechanical adjustments, rule out contamination. Dust acts like a physical barrier. Tiny fiber shards hide on the clamp, blade, or anvil block. This debris alters the clamping pressure. It forces the fiber into an uneven posture. This mimics the exact symptoms of a misaligned blade. You adjust the height, but the problem persists. You just ruined a perfectly good calibration because the tool was merely dirty.

We strictly enforce approved cleaning standards. You must use only high-purity isopropyl alcohol. The alcohol must be 99% pure. You apply it using dedicated lint-free cotton swabs. Gently wipe the blade edge, the anvil, and the rubber clamping pads. Never use abrasive cleaners. Never use standard rubbing alcohol. Rubbing alcohol contains high water content. It degrades the rubber clamping pads rapidly. Incorrect solvents leave chemical residues on the glass. These residues ruin your splice arc.

We utilize a symptom-cause-solution mapping framework. This framework accelerates field repairs. It removes guesswork from the diagnostic process.

Conclusion

Adjusting a Fiber Cleaver is an exercise in strict mechanical compliance. You must differentiate vertical height issues from rotational wear. You must use the 1/4-turn rule for any height modification. You must enforce rigorous daily cleaning protocols using pure isopropyl alcohol. Mastery of these physical baselines separates amateur operations from enterprise-grade network deployments.

Consider your next-step actions carefully. Some fleets experience high splice failure rates despite strict calibration protocols. If you follow all rules and still fail, audit the physical wear. Check the cleaver tracks and anvil blocks. Guide rails wear out over thousands of sliding motions. Anvils develop permanent grooves. If the core mechanics are compromised, a simple blade replacement will not suffice. Upgrading the entire unit becomes the mathematically sound business decision. It prevents endless labor hours wasted on unfixable equipment.

FAQ

Q: How often should I change the position of my fiber cleaver blade?

A: Typically, a single blade position is rated for 1,000 to 1,500 cleaves. If you notice a sudden increase in poor cleave angles or "lip" formations before hitting this metric, rotate the blade to rule out premature wear.

Q: Why is my fiber cleaver breaking the fiber instead of scoring it?

A: The blade is likely set too high. A high blade crushes the fiber against the anvil rather than creating a micro-score. Lower the blade using the 1/4 turn method until it sits flush with the rubber pads.

Q: Can I use any alcohol to clean the cleaver blade and pads?

A: No. Only use high-purity isopropyl alcohol (99%). Other chemicals, including standard rubbing alcohol with high water content or industrial solvents, will degrade the rubber grip pads and leave a residue on the blade, ruining future cleaves.
