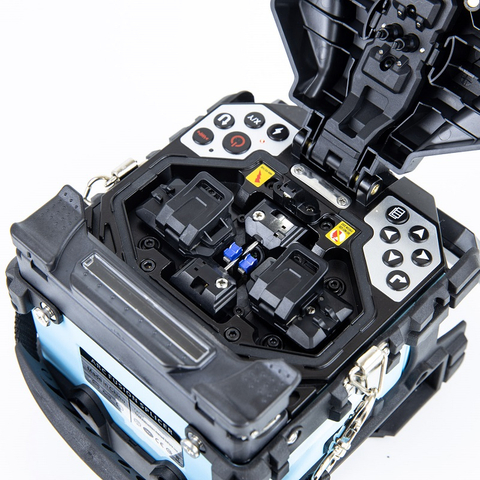

HOEA3600
Specifications
| Applicable Fibers | SM(ITU-T G.652), MM(ITU-T G.651), NZ-DS(ITU-T G.653), NZDS (ITU-T G.655),EDF, Pigtail, Cable (rubber-insulated wire), others(including G.657 & G.651) SC/LC/FC connector (optional function) |
| Average Splice Loss | 0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS), 0.04dB(EDF) |
| Return Loss | ≥60dB |
| Tension Test | 2.0N(200gf)(Standard) |
| Typical splicing time | 8 -9 seconds |
| Typical heating time | 15-25 seconds |
| Splicing Program | 50 groups |
| Protection Sleeve Length | 20mm, 40mm, 60mm |
| Operating Language | Chinese, English, French, Portuguese, Spanish |
| Operating Conditions | -25~+50°C(operation temperature),0~95% RH(humidity), 0~5000m(altitude) |
| Power Supply | AC adaptor: 100~240V input voltage, 50/60Hz; 12V, 5A output voltage(DC) Inner lithium battery: 12V, 5.2AH |
| Monitor | 4.3 inches high resolution colorful LCD display |
| Fiber Image Magnification | X or Y axis Separately views 420 times magnification, or Simultaneously 220 times |
| Storage of Splice Result | 6,000 groups of latest splice results |
| Splicing Mode | Auto & Manual & Full Auto |
| Dimensions | 120(W)*120(D)*130(H)mm |
