Tri-Hole Fiber Stripper Tool for FTTH Splicing Preparation
50 Reviews

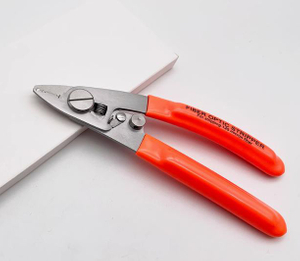

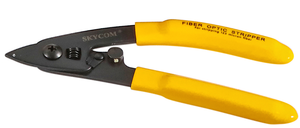

The SKYCOM Tri-Hole Fiber Stripper is designed for multiple fiber-preparation steps before cleaving, splicing or termination. Its three stripping positions support common fiber coating and pigtail sheath removal, including a 1.98 mm top opening for peeling the outer sheath of pigtail cable. The V-shaped stripping mouth and precision-machined cutting surfaces are factory set for clean, smooth operation without routine adjustment. An ergonomic handle improves grip during repeated field work, while the blade can be locked in the closed position when the tool is not in use.
1.98mm top opening can be used to peel off the outer sheath pigtail
V-shaped mouth edge of the clamp opening and 140m on the optical fiber can be used for stripping 125m 250m cladding
Manufacturer default, goes without adjustment
Will not damage the fiber
All cutting surfaces have sophisticated mechanical tolerances to ensure a clean, smooth operation
Ergonomically designed handle, comfortable grip
When not in use, the blade locked in the closed state
Overview
The Tri-hole Fiber Stripper is a multi-position hand tool for preparing optical fiber before cleaning, cleaving, splicing or connector termination. The three stripping areas are intended to handle different layers of common fiber and pigtail constructions in one compact tool.
The 1.98mm top opening can be used to remove the outer sheath of pigtail cable. The V-shaped stripping area is designed for fiber coating or cladding preparation as described in the original product specification. All cutting surfaces are manufactured with controlled mechanical tolerances to support a clean and smooth stripping action.
The tool is supplied with manufacturer-set adjustment, so routine blade calibration is not required. The ergonomic handle supports a comfortable grip, and the blade can be locked closed for safer storage between jobs.
Features
Three stripping positions for fiber coating and pigtail preparation.
1.98mm top opening for pigtail outer-sheath removal.
Factory preset with no routine adjustment required.
Precision-machined cutting surfaces for clean and smooth operation.
Ergonomically designed handle.
Closed-position blade lock for storage.
Main Characteristic
Specification
Original Product Information
Tool Type
The three unique fiber coating stripping pliers
Fiber Coating
For stripping 125m 250m fiber coating
Top Opening
1.98mm top opening can be used to peel off the outer sheath pigtail
V-shaped Mouth
V-shaped mouth edge of the clamp opening and 140m on the optical fiber can be used for stripping 125m 250m cladding
Adjustment
Manufacturer default, goes without adjustment
Fiber Protection
Will not damage the fiber
Cutting Surface
All cutting surfaces have sophisticated mechanical tolerances to ensure a clean, smooth operation
Handle
Ergonomically designed handle, comfortable grip
Blade Lock
When not in use, the blade locked in the closed state
Applications
Fiber preparation before fusion splicing.
Pigtail outer-sheath and coating removal.
FTTH installation and access-network maintenance.
Technician tool kits for routine optical-fiber preparation.
