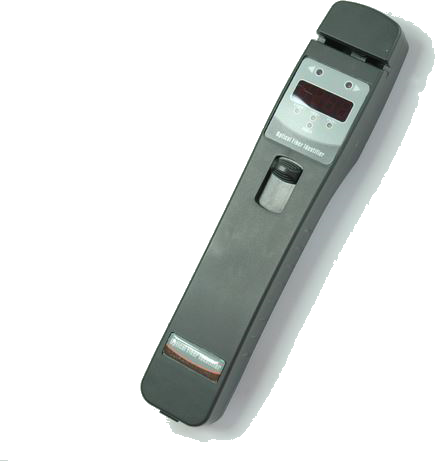

T-FI450 Optical Fiber Identifier

Indicate the signal direction in fiber;

Detect tones 270Hz, 1kHz and 2kHz;

Suitable for 0.25, 0.9, 2.0, 3.0mm fiber,

Build in VFL 1mW or 10mW optional

Battery low indication;

Powered by 2 units of 1.5V AA batteries;

  • SKYCOM

  • T-FI450

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Specifications

1)  Support to detect optical signals
without disrupting traffic;
Based on non-destructive technology;

2)  Indicate the signal direction in fiber;

3) Detect a variety of optical tones,
270Hz, 1kHz and 2kHz;

4) Suitable for 0.25, 0.9, 2.0, 3.0mm
fiber, and no need to replace the clamp
block, more convenient than others;

5) Build in visible fault locator
1mW or 10mW optional

6) Battery low indication;

7 Powered by 2 units of 1.5V AA alkaline
batteries;


Main Characteristic
  T-FI450 T-FI450S T-FI450L
Wavelength Range 800 to 1700nm (SM)
Recognizable signal type* CW, 2kHz, 1kHz, 270Hz ±10%
Detector Type InGaAs 2pcs
Fiber Type 0.9, 0.25, 2.0, 3.0 mm fiber
Sensitivity +10 ~ -50dBm
Accuracy * +10dB to -30 dBm (Continuous Wave)
+10dB to -25 dBm (Modulated Signal)
LED Indicator Signal direction; signal frequency (2kHz/1kHz/270Hz); low battery
Visual Fault Locator No 1mW  10mW
Temperature Storage: -20 -- +60 ℃, < 90%RH        Operating: -10 -- +50 ℃, < 90%RH
Power Supply AA * 2
Size / Weight 230mm * 45mm * 45mm  /  About 200g
 * at 20±3℃, indoor, 1550nm wavelength, 0.9mm fiber, with white coat, 270Hz, error < 5%,
 * 0.25, 2.0, 3.0mm fiber, the performance at continuous wave will be lower
 * 1KHz, 2KHz, the performance at modulated signal will be lower
 * at 1310nm wavelength, the performance will be lower


Accessories
Standard User’s manual 1
Calibration certification 1
Carrying bag 1

Previous:
Next:

Related Products

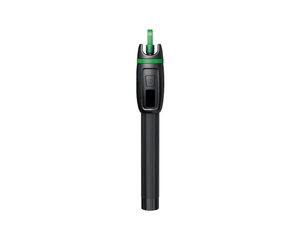

KFL-11P Optical Fiber Identifier
KFL-11P Optical Fiber Identifier

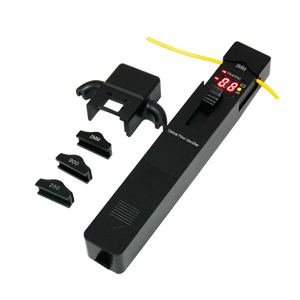

T-FI350 Optical Fiber Identifier
