Skycom Series Fusion Splicer Outlook Overview

Skycom Series Fusion Splicer is a specialized, user-friendly device engineered for precise fiber optic splicing tasks, ideal for 5G, Fiber-to-the-Home (FTTH), and future communication needs. It ensures reliable performance, ease of operation, and adaptability to diverse working conditions.

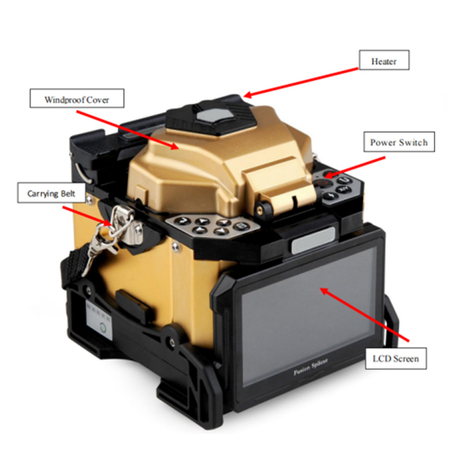

At its core, the splicer features key functional parts:

The ‘Heater’ for post-splicing heat treatment,

The ‘Windproof Cover’ that protects the splicing area from airflow interference , and

The prominent ‘Power Switch’ for straightforward power control.

The ‘LCD Screen’ serves as the operational hub, displaying real-time parameters, splicing status, and menu options, enabling users to monitor and adjust settings effortlessly.

The detachable ''Carrying Belt'' adds portability, making the Outlook Fusion Splicer a practical, all-in-one solution for professional fiber optic work.

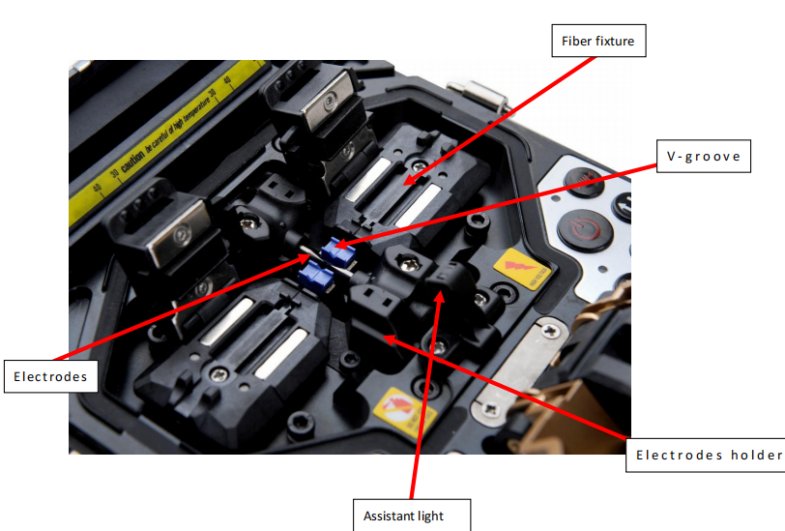

For secure fiber handling, the device includes ''Fiber Fixtures'' to stabilize fibers, the core splicing function relies on two ''Electrodes'' , while a precision ''V-groove'' and two ''Electrodes Holders'' ensures accurate fiber alignment,essential for high-quality splices.

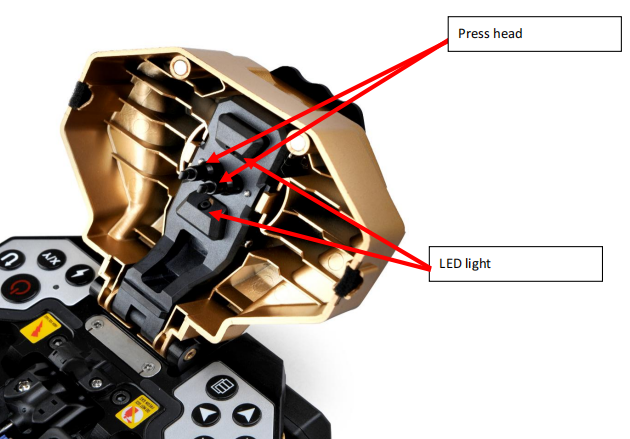

Additional enhancements include an ''LED light'', and a ''Press head'' .

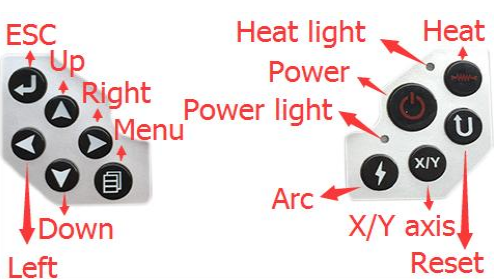

Operational control is streamlined via intuitive buttons: ''ESC'' for exiting, ''Up/Down/Left/Right keys'' for adjusting , a ''Menu'' button for accessing , and a ''Reset'' button for system recalibration. Visual cues are provided by ''Power light'' (indicating power status) and ''Heat light'' (signaling heating mode).
