T-900G
SKYCOM

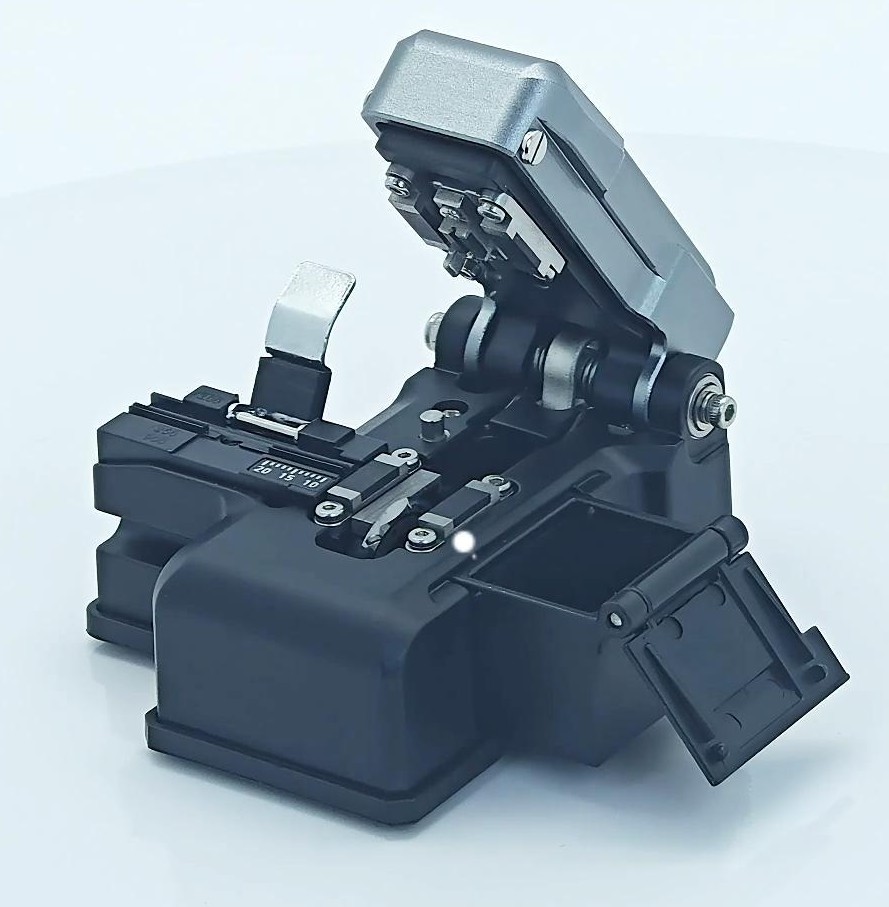

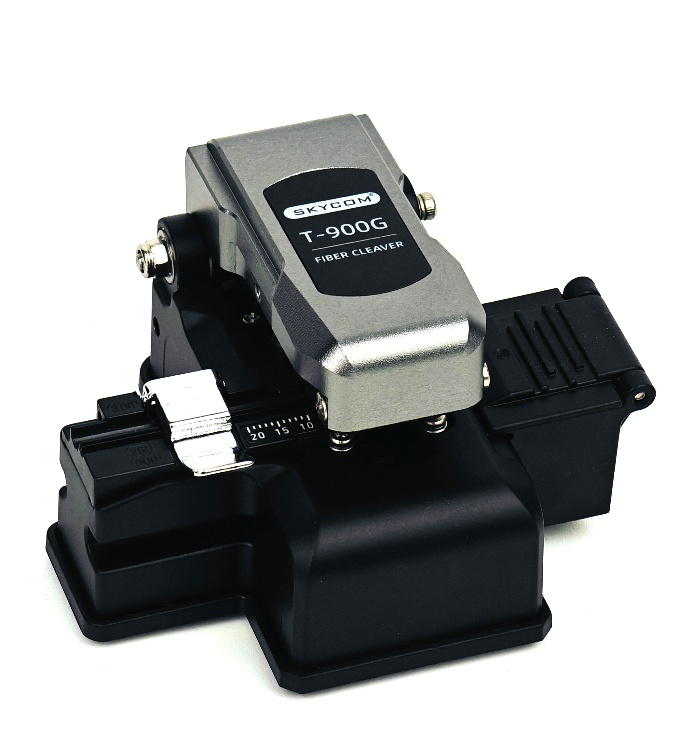

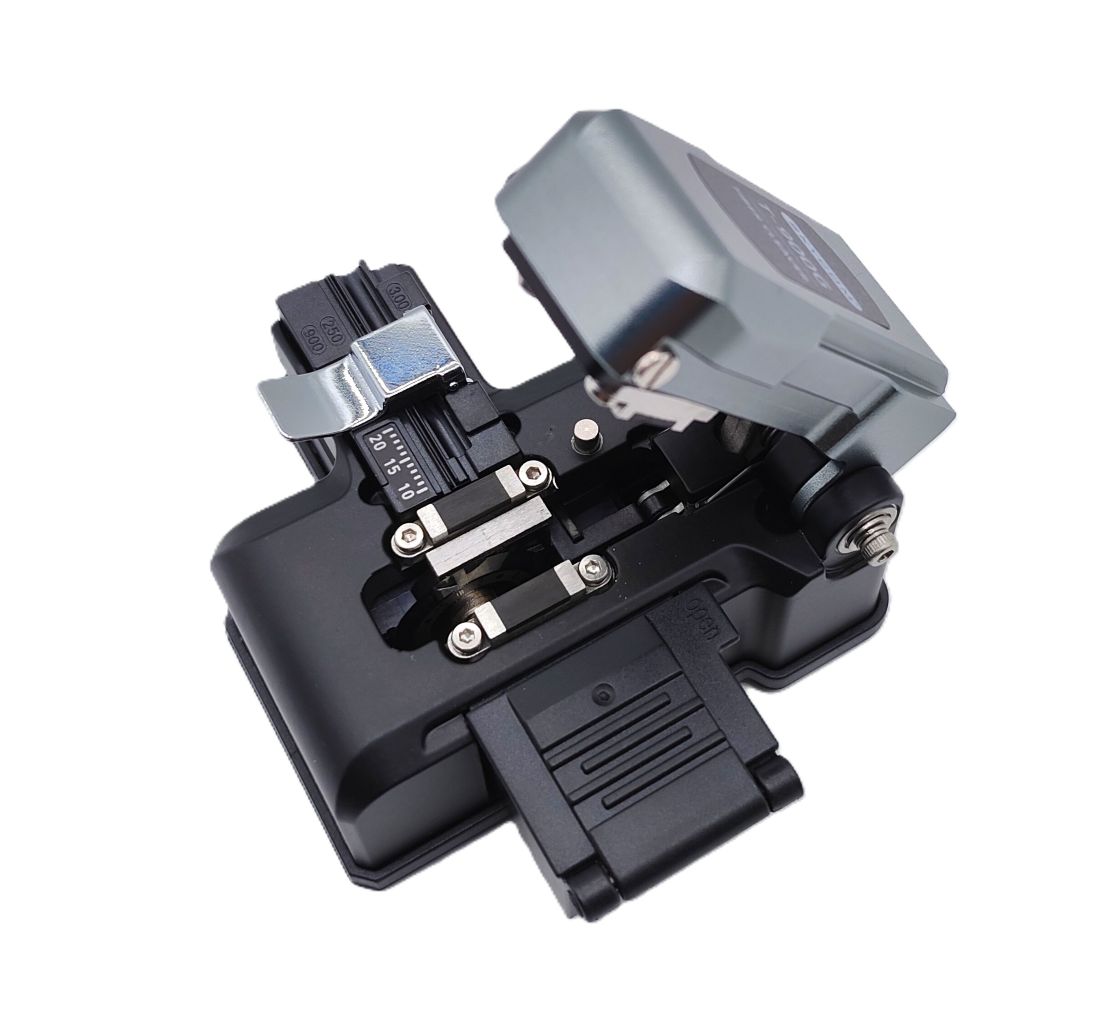

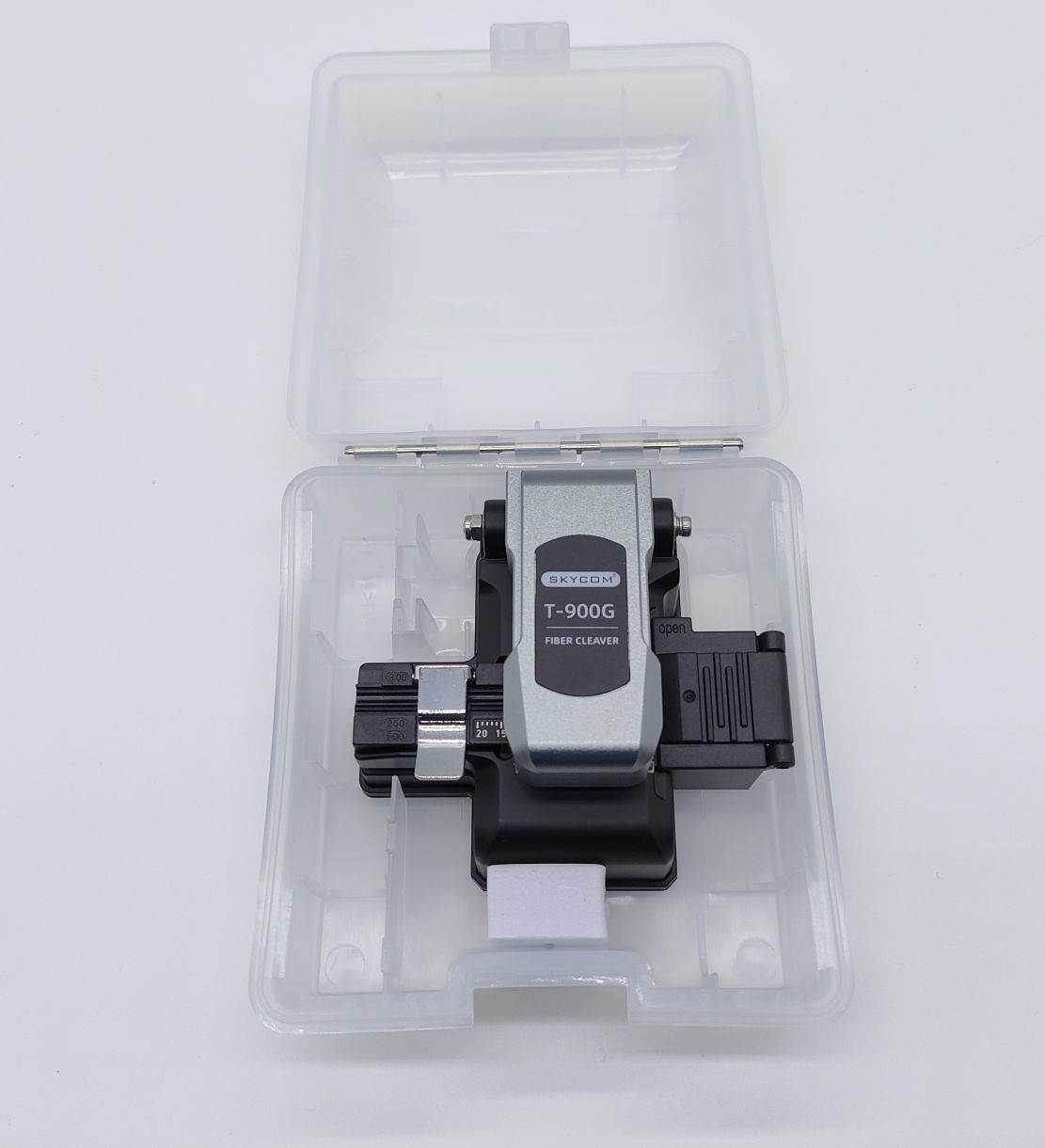

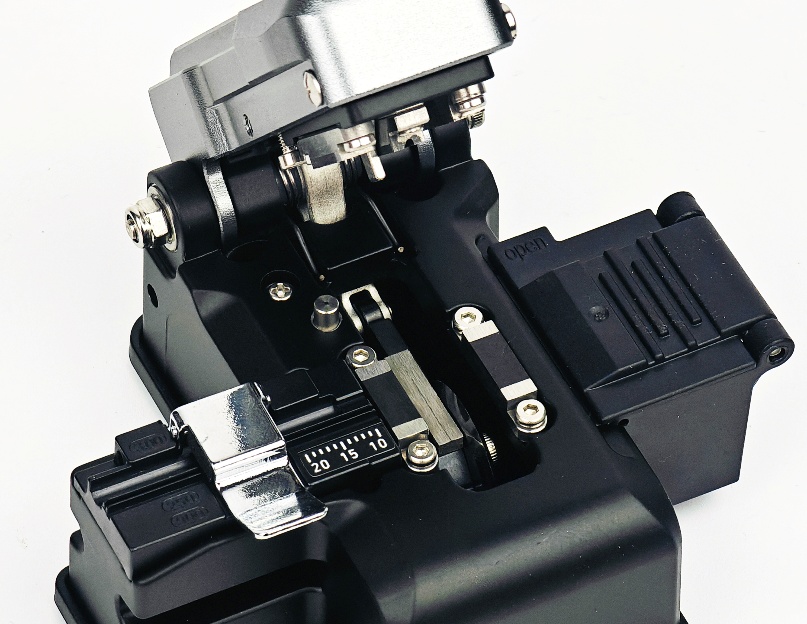

SKYCOM T-900G optical fiber cleaver one-step cleaver
Main features:
1) Weight: 0.21 kg.
2) Blade Lifetime: 48000 cleaves.
3) Fiber Cleave Length: 5~20mm
Product Specification
Applicable range | Single core fiber |
Coating Diameter | 100~1000um |
Fiber Diameter | 80~150um |
Cleave Length | 5~20mm（Visible）0~20mm（Estimatible） |
Dimension | 87W*78D*52H(mm) |
Weight | 0.21kg |
Cleaving Angle | ≤0.5° |
Blade Life | 48000 times |
Quick User Guide:
Storage Conditions:
- Store at 20±5℃ in dry & clean environment
Prohibited Actions:
- Liquid contact with blade housing; - Subject the Product to collisions or violent impacts;
- Alcohol-based cleaning on fiber seating pad
Cleaning Procedure:
1. Fiber clamping plate: - Weekly routine cleaning wipe;
2. Fiber loading groove: - Bi-weekly dust purging
