Product Introduction

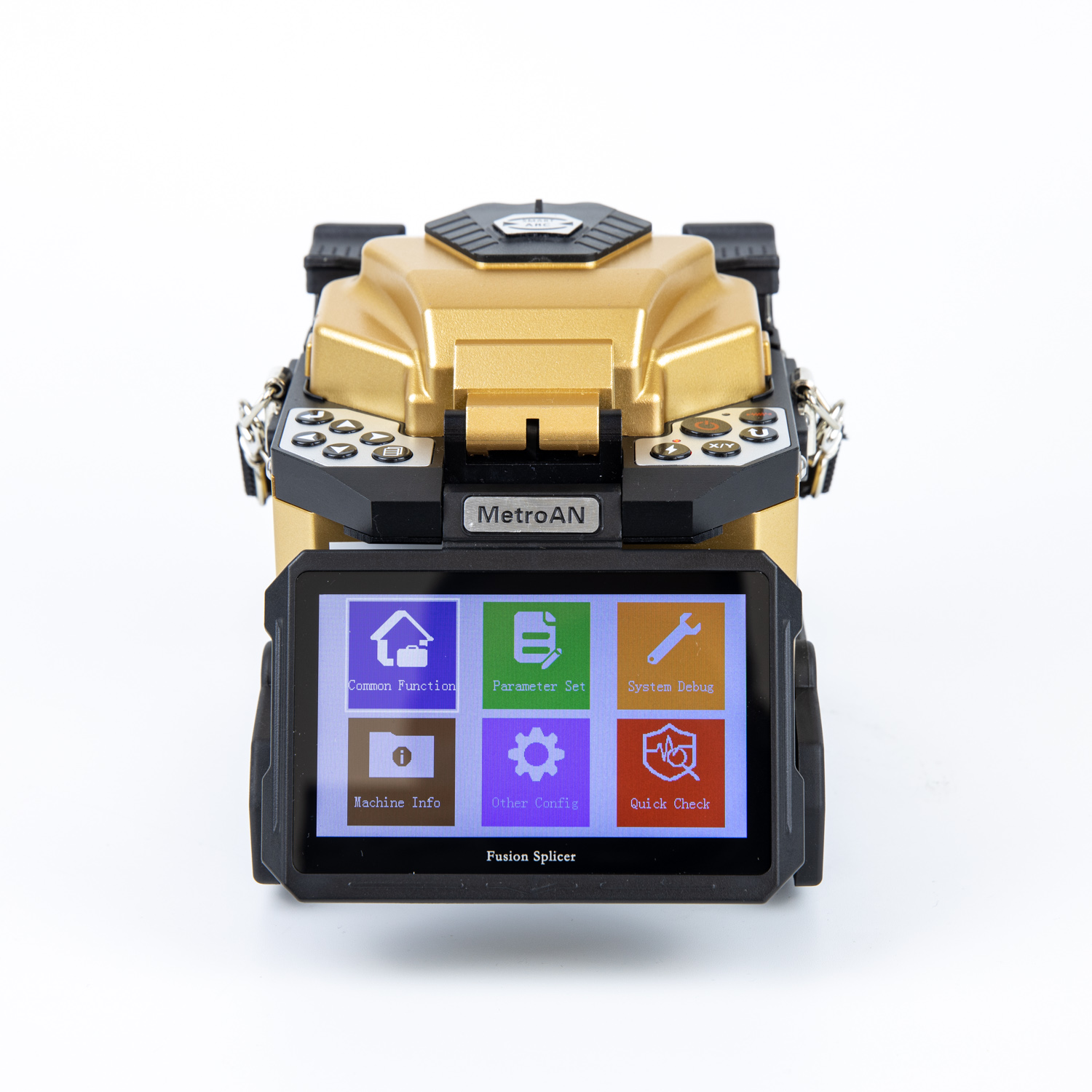

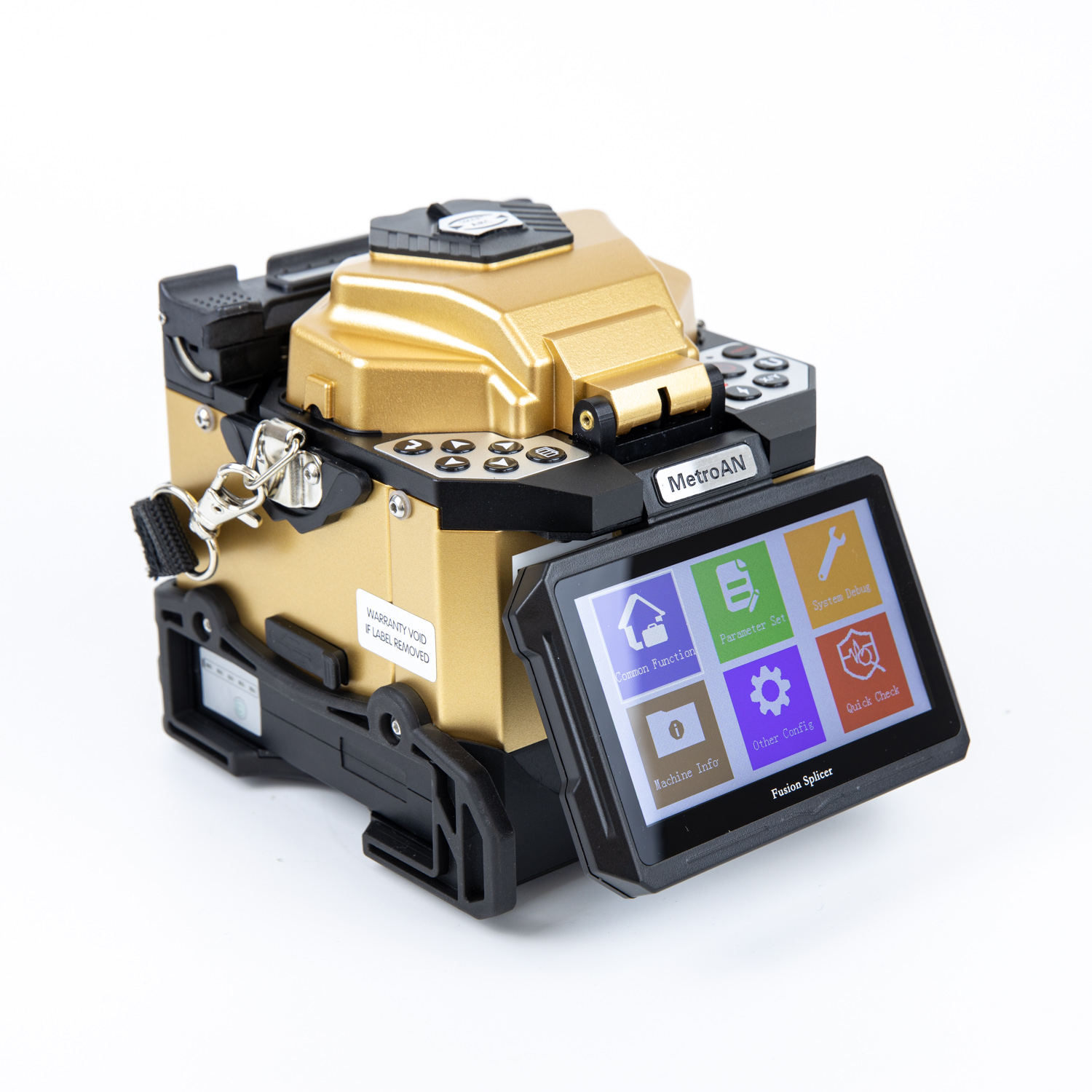

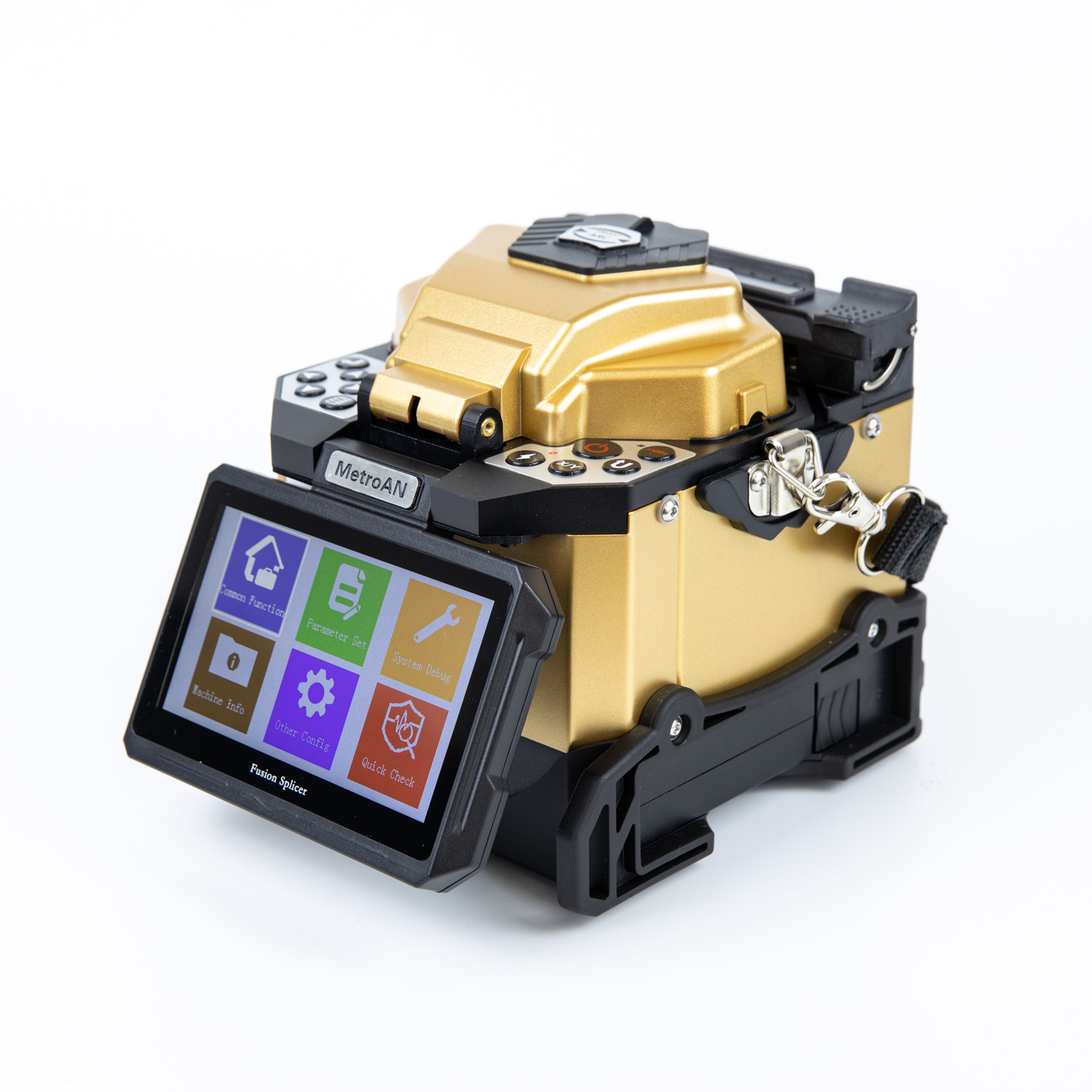

The SKYCOM T-329S is an advanced fiber fusion splicer powered by 6 motors, offering better display views to enable precise fiber alignment. It comes with a practical SM/MM fiber identification function, when this function is turned on, the machine can automatically identify the fiber mode and suggest the right splicing parameters, simplifying operations while ensuring stability. Suitable for fiber optical projects demanding high accuracy, it delivers reliable performance for quality splicing results.
Product Advantage
6 Motor Core to Core Alignment
● High-resolution display: 4.3-inch colorful LCD with rotatable image based on position
● Typical splice time: 8 second
● Heating modes: Optional with typical tube-heat time 20 seconds, quick mode 16 seconds
● Battery performance: Rechargeable and up to 220 times of continuous splice and heat after fully charged
● Magnification capability:Separately X or Y axis views with 520 times magnification
● Arc adjustment: Automatic arc power adjustment based on pressure and temperature, no frequent arc tests needed
● Automation: Fully automatic splicing and heating process
● Core alignment:New developed core alignment technology, improved accuracy (PAS technology)
● Application scope: Suitable for 100kms backbone transmission networks
● Environmental resistance: New steering wind-proof design with improved locator for stronger wind and dust resistance
● Portable design: Weighs 1.7kgs (with battery)
Technical Parameters
Monitor | 4.3 inches high resolution touch screen LCD display |
Applicable Fibers | Single/SMF (G.652/657), MMF (G.651), DSF (G.653), NZDSF (G.655), FTTH drop cable, SC/LC/FC connector (optional) |
Average Splice Loss | 0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS), 0.04dB(EDF) |
Return Loss | ≥60dB |
Quick splicing time | 8 seconds |
Quick heating time | 20 seconds |
Operating Language | English, French, Portuguese, Spanish, Italian, Russian Indonesian |
Operating Conditions | -10~+50°C(operation temperature),0~95% RH(humidity), 0~5000m(altitude) |
Fiber Image Magnification | X or Y Separately 520 times or Simultaneously 280 times |
Fiber identification | Available |
Estimated Splice Loss | Available |
Cleaving angle detection | Available |
Storage of Splice Result | 6,000 groups of latest splice results,100 images |
Power Supply | Inner lithium battery: 10.95V, 5.2 Ah, 5200mAh, Up to 220 times splice and heat |
Dimensions | 124(W)*131(H)*121(D)mm |
Weight | 1.38kg(without battery pack) |
Product Uses
Environmental conditions
 |  |  |
● 100kms Backbone Transmission Networks: Suitable for 100kms backbone networks, with low splice loss and PAS core alignment tech, ensuring stable long-distance fiber signals for large-scale backbone construction.
● FTTx Fiber-to-the-Home Projects: 1.7kg portable body, 8s splicing and 16s quick heating mode improve efficiency, fitting indoor-outdoor FTTx scenarios to accelerate home fiber installation.
● Outdoor/Remote Field Operations: Features wind-dust resistance, 220-cycle battery life and -10~+50℃ working temp, supporting reliable splicing in outdoor or remote areas.
Product Operate Guide
1.Fiber splicing:
Step 1. put the fiber into the left fiber holder of the splicer.（ The end of fiber should be 1 mm to 1.5 mm from electrodes.）
Step 2. put the second fiber into the right fiber holder of the splicer. (The end of fiber should also be 1 mm to 1.5 mm from the electrodes.)
Step 3.Close the windproof cover. The fusion splicer will automatically splice.
2.Heat fiber sleeve:
Step1. Open the heater's lid.
Step2. Open the windproof cover, then take hold of the left fiber meanwhile open the left fiber holder.
Step3. Move the fiber sleeve to the left fiber holder.
Step4. Pull out the right fiber with your right hand and open the right fiber holder to straighten the fiber.
Step5. the right thumb is placed 20 mm from the fusion point. Tilt the fiber to the right to slide down the fiber sleeve towards to the thumb.
Step6. Straighten the fiber, put the fiber sleeve into the middle of the heater, shut the lid of the heater and the fiber is heated automatically.
Step7. When the heating indicator light goes off (with a beep) , the heating is done.

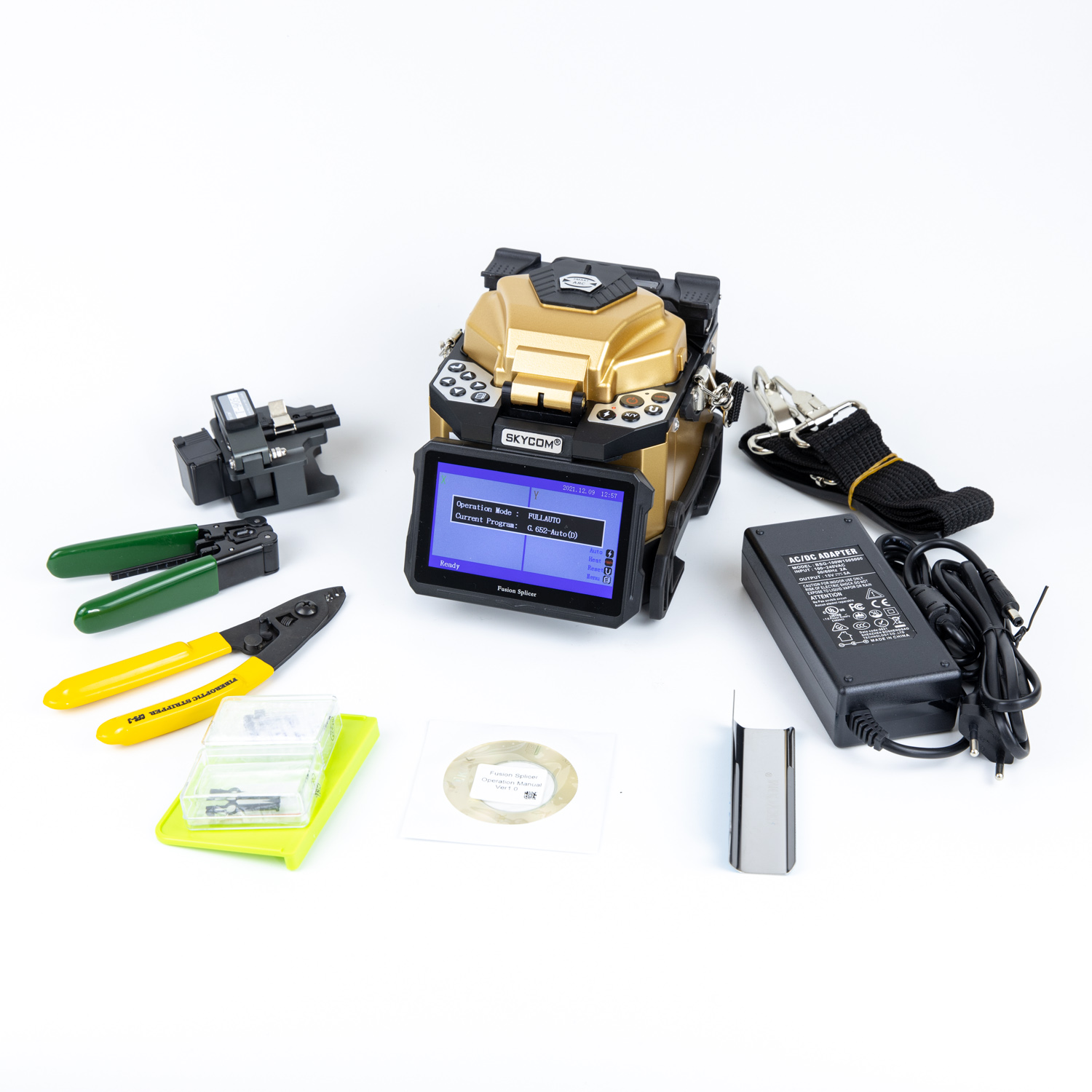

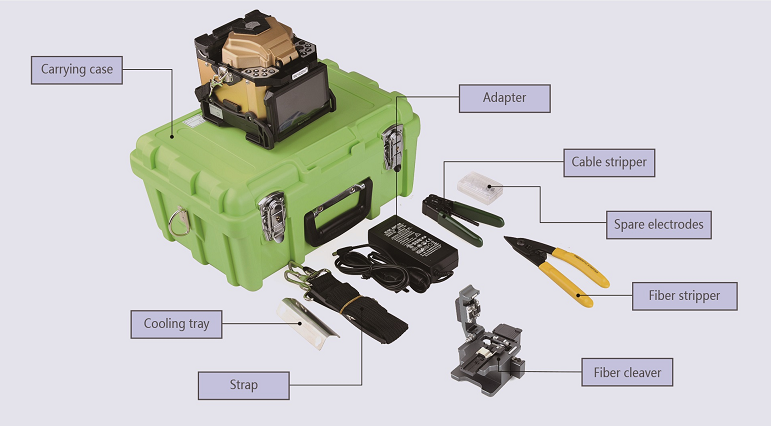

Standard Package
No. | Item | Quantity |
1 | Machine (T-329) | 1pc |
2 | Battery | 1pc |
3 | AC Adaptor | 1pc |
4 | Cooling Tray | 1pc |
5 | Quick Reference Guide | 1pc |
6 | Carrying Case with Carrying Strap | 1pc |
7 | Fiber Stripper | 1pc |
8 | Fiber Cleaver | 1pc |
9 | Drop cable stripper | 1pc |
10 | Spare Electrodes | 1 pair |
