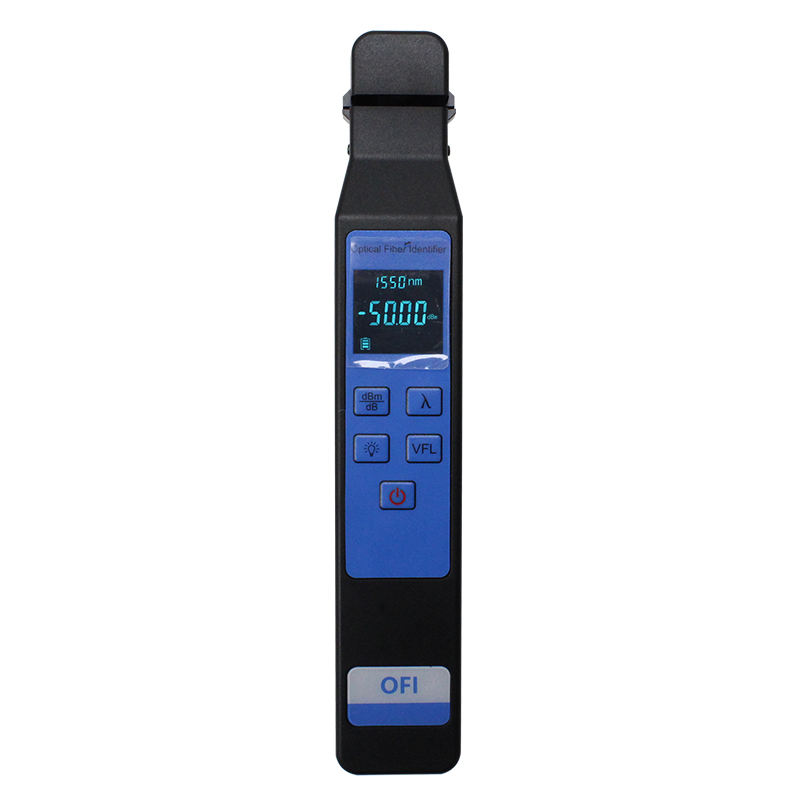

TFI3306E Optical Fiber Identifier
Overview
TFI3306E fiber optic identification instrument is a new comprehensive test instrument newly developed by our company, which not only has the function of conventional fiber optic identification instrument to carry out nondestructive fiber optic identification detection work in any position of single-mode and multimode fiber, but also has the optical power module and red light visual fault location function necessary for fiber optic link construction and maintenance detection, which is a high-performance tester in current fiber optic network maintenance detection.
Product Features
• Color screen display
• Metal structure 4-in-1 test fixture (can detect 250/900um and 2 to 3mm of various optical fibers)
• With online test to identify power direction, frequency detection function
• Low insertion loss, test dynamic range
• With ordinary power meter function (including frequency detection)
• With VFL function
• Low battery prompt
Technical specifications*
Model | TFI3306E Optical Fiber Identifier |
Identifier module | |
Wavelength range(nm) | 800～1700 |
Probe type | InGaAs |
Adapter type（mm） | 250um、900um、2mm、3mm |
Modulation frequency（Hz） | CW，270，1K，2K |

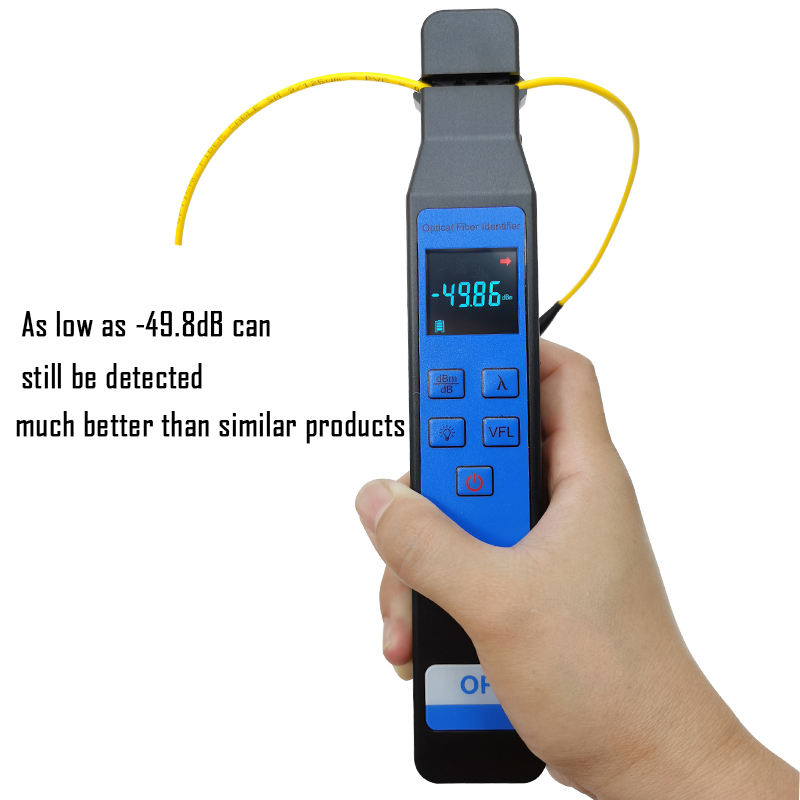

Optical fiber signal display detection range（dBm） | +13～-50 |
Signal direction detection range（dBm）Typical Value | +13～-35 |
Signal frequency indication（Hz） | 270，1K，2K |
Signal frequency detection range（dBm）Typical Value | +13～-30 |
Standard OPM module | |
Test wavelength(nm) | 850、1300、1310、1490、1550、1625 |
Power test range（dBm） | +26～-50 |
Unit | dBm、dB、xW |
Resolution ratio（dB） | 0.01 |
Uncertainty（dB） | ≤0.5 |
Test interface | Φ2.5mm universal interface |
VFL module | |
Wavelength （nm） | 650±10 |
Output power (mW) | ≥10 |
Test interface | Φ2.5mm universal interface |
Others | |
Display screen | Color-LCD |
Power supply | 2*1.5V AA battery |
Operating temperature (℃) | -20～+60 |
Storage temperature (℃) | -30～+70 |
Dimension（mm）without switch pull button | 220*38*28 |
Weight (g) without batteries | 145 |
Note: Relevant test data at @1550nm
Standard configuration
No. | Name | Quantity/pc |
1 | Main device | 1 |
2 | User manual | 1 |
3 | Certification | 1 |

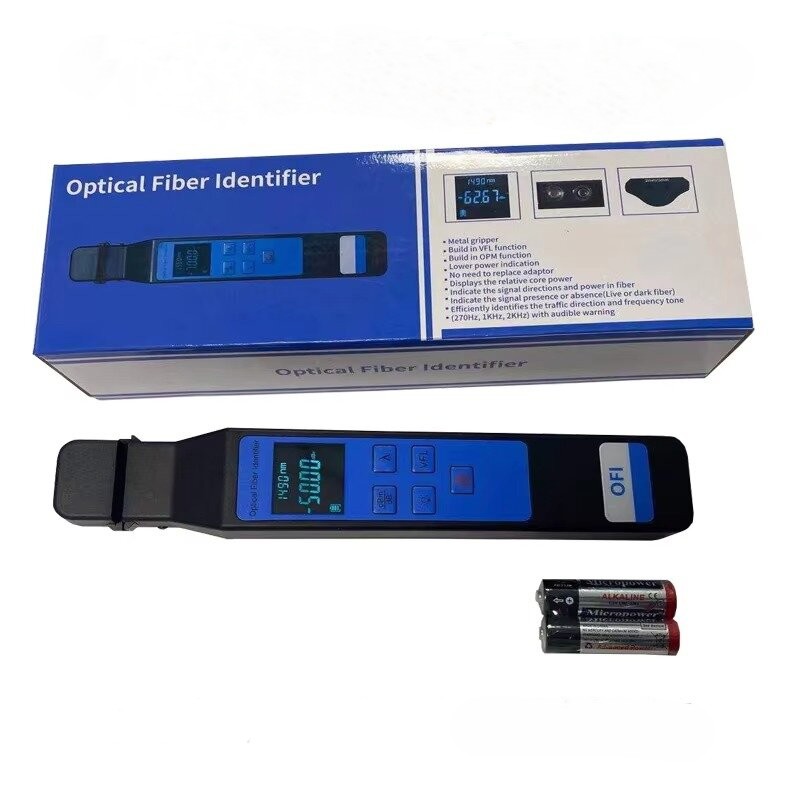

4 | Carry bag | 1 |
