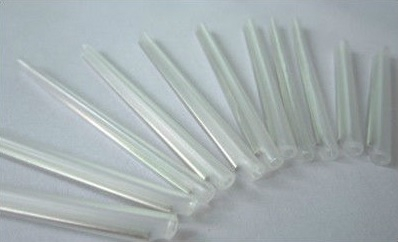

Fiber Optic Splice Protection Sleeves
A specially designed crosslinked Clear Heat Shrinkable tubing,with Clear fusion tubing liner, providing SS304 strength member and protection to fiber optical splices.
Features
*Single holed(preshrunk)ends eliminates improper fiber threading
*Smooth,deburred stainless steel reinforcing member ends decrease the risk
of fiber damage during installation
*Extended liner length prevents contact between the fiber and ther backbone
*Clear sleeve design persign permits easy centering of splice before heating
*Sealing structure makes the splice free from effect of temperature and
humidity from environment
Operating temperature -45oC to + 100 oC
Minimun fully recovery temperature 120 oC
| Product Dimension(mm) | |||||||
| Order Ref. Number. | Heat Shrinkable protective tube | Fusion tube (Inner Tube) | Steel Rod (Strength) | Applicable | |||
| I.D D1 | Length L | I.D D | Length L | O.D d | Length l | ||
| 60mmBF | 3.5 | 60 | 2.2 | 59 | 1.5 | 55 | Bare fiber |
| 60mmAP | 5 | 60 | 3.5 | 59 | 1.5 | 55 | Fiber cable |
