PON Power Meter
TPON370 Series

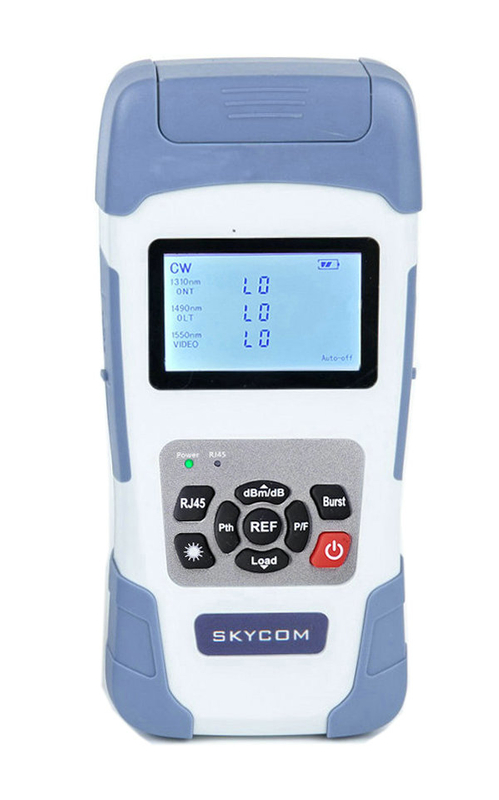

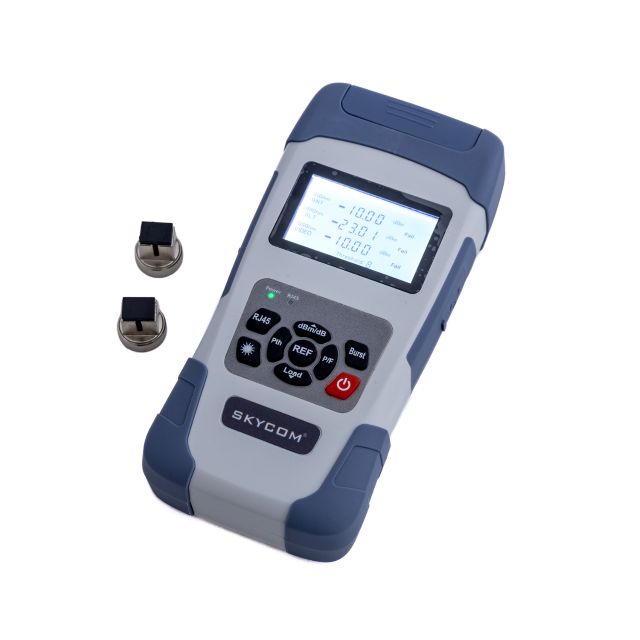

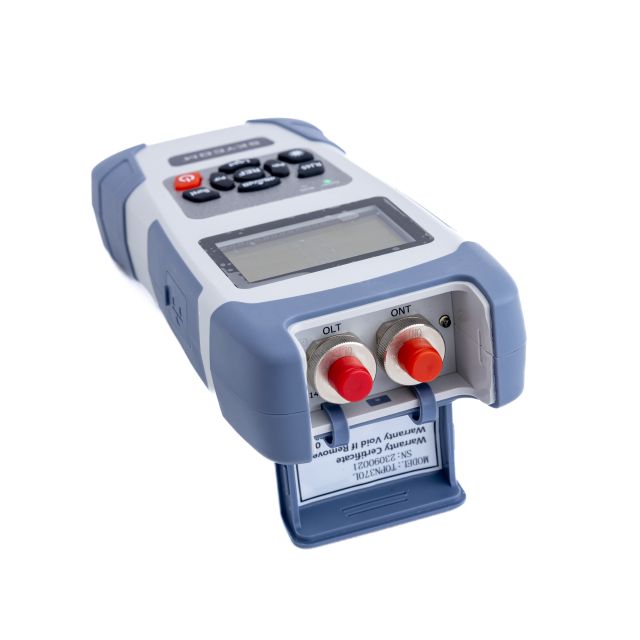

TPON370 optical power meter is a light and compact high-performance handheld optical power test instrument. It is a new test instrument specially launched for FTTX/PON passive optical network testing, installation and daily maintenance. TPON370 optical power meter has two measurement ports "ONT" and "OLT/Video", which can support 1310nm continuous/burst uplink signal and 1490nm, 1550nm synchronous downlink signal test, and can also set the power threshold test, pass, warn or fail The passed indication can visually display the status of the optical path under test. At the same time, the TPON370 optical power meter can also store a large amount of test data, and the meter data can be transmitted to the PC through the USB cable, which is convenient for comparison and viewing, and meets the needs of engineering applications.
Measurable wavelength | 1310nm(Burst)/ 1310nm(CW) | 1490nm | 1550nm | |
Sensor type | InGaAs | |||
Isolation | 1490nm>-40dBm 1550nm>-40dBm | 1550nm>-40dBm | 1490nm>-40dBm | |
Responsivity | 0.14A/W | 0.14A/W | 0.018A/W | |
Examination area (dBm) | -55~+13 | -55~+13 | -45~+25 | |
Dark Current (nA) | <1 (Typical: 0.1nA) | |||
Accuracy(dB) | ±0.3 | |||
Capacitance(Pf) | 0.75 | 5 | 5 | |
Power voltage | lithium battery:3.7V/1800mAh USB:5V | |||
Operating temperature | -10~+50 | |||
Storage temperature | -25~+60 | |||
Relative humidity | 0~95%(no condensation) | |||
Data storage | 1000 | |||
Threshold design | 10 | |||
Communication interface | Micro USB | |||
