TOP360GV10
SKYCOM

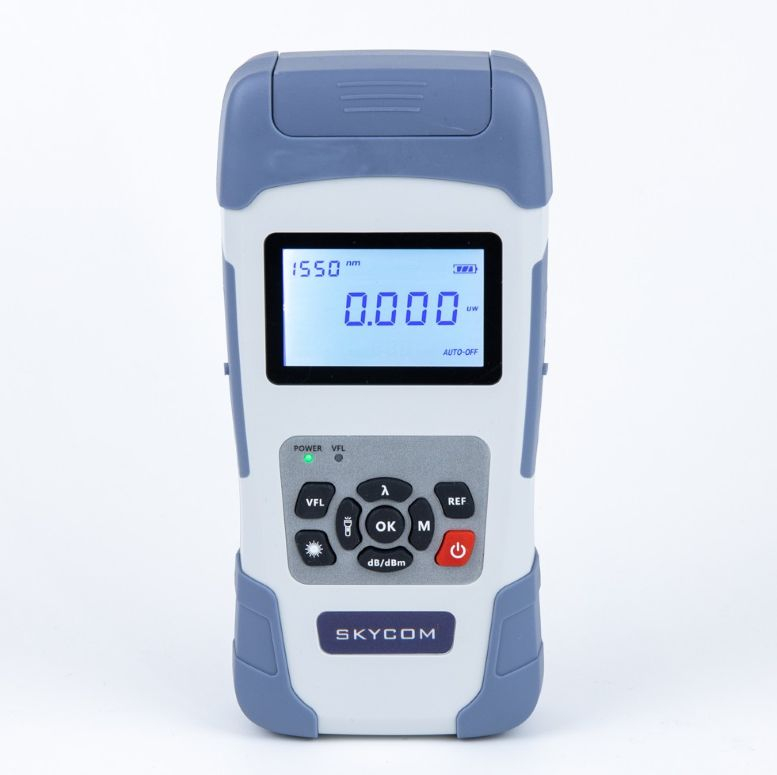

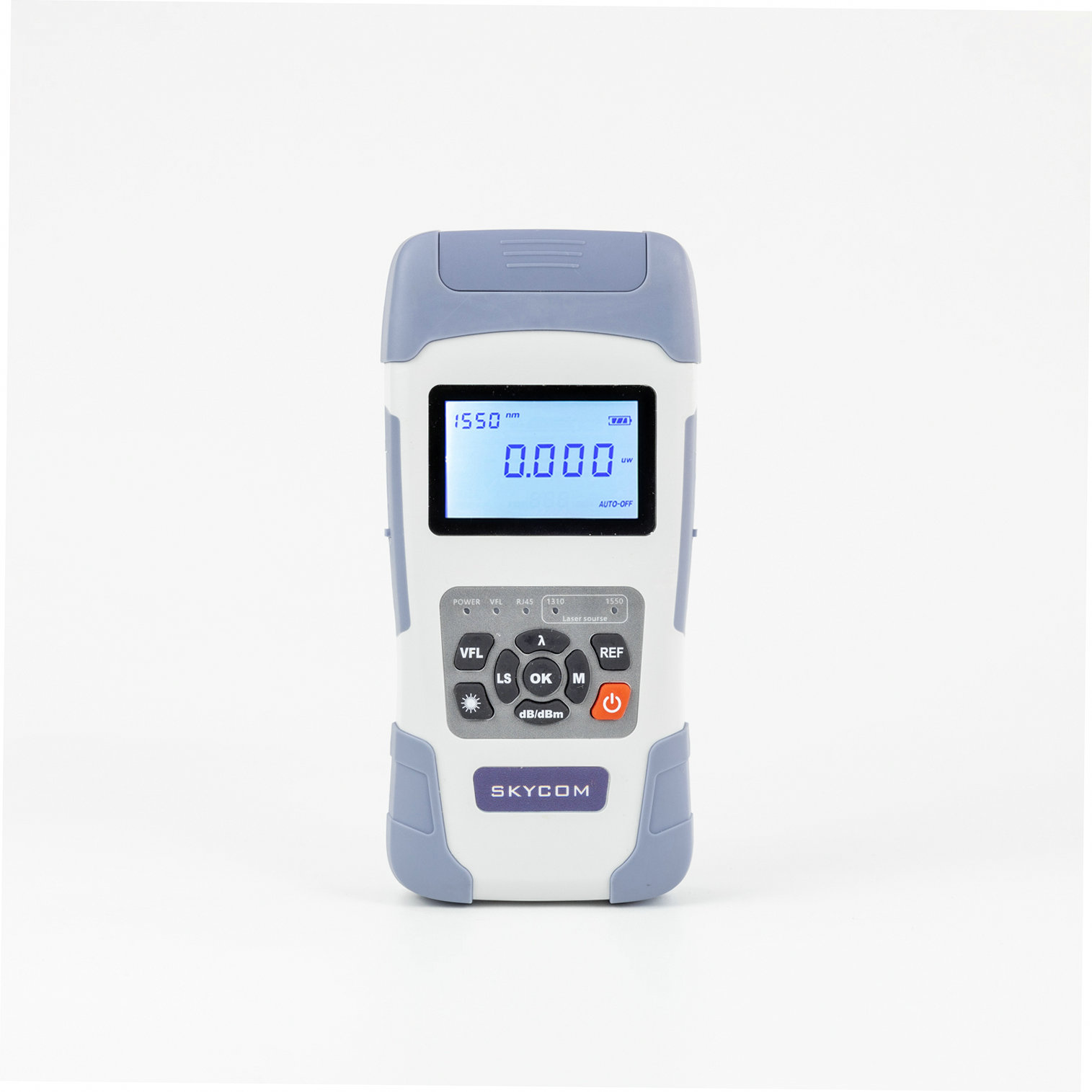

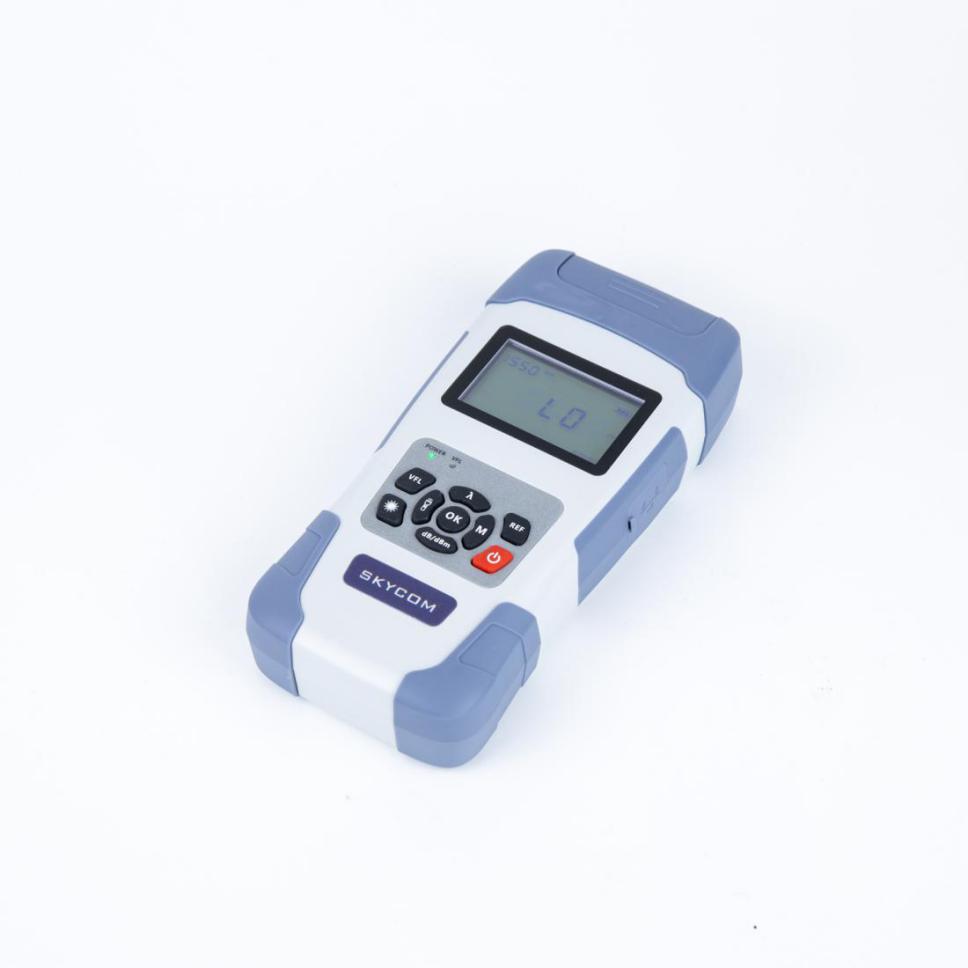

SKYCOM TOP360 OPTICAL MULTI-METER
Product description:
SKYCOM TOP360 optical multi-meter combines optical power meter, visual fault locator, light source network line test in one device. It eliminates the inconvenience of carrying several instruments to the test site, providing more accurate, durable and efficient test tools for engineers who install, operate and maintain fiber optic networks.
Features:
1.4 in 1 Function:Optical Power Meter + Visual Fault Locator +Light Source + Network Cable Test.
2.Multi-wavelength laser output
3.Cut hidden costs to lower the total cost of ownership.
4.Simple-to-use test tool,operate simpler.
5.Reduce work links, do it faster, improve work efficiency
Main Features:
Model: | TOP360DV10-LS35 | TOP360GV10-LS35 | |
Power meter | |||
Measurement Range(dBm) | 1310/1490/1550/1625: +10 ~ -70dBm 850/1300: +10 ~ -60dBm | 1310/1490/1550/1625: +26 ~ -50dBm 850/1300: +26 ~ -40dBm | |
Accuracy * | ± 0.2 dB | ||
Calibrated Wavelengths | 850nm / 1300nm / 1310nm / 1490nm / 1550nm / 1625nm | ||
Linearity | ±2% | ||
Resolution | 0.01dB | ||
PD Type | InGaAs | ||

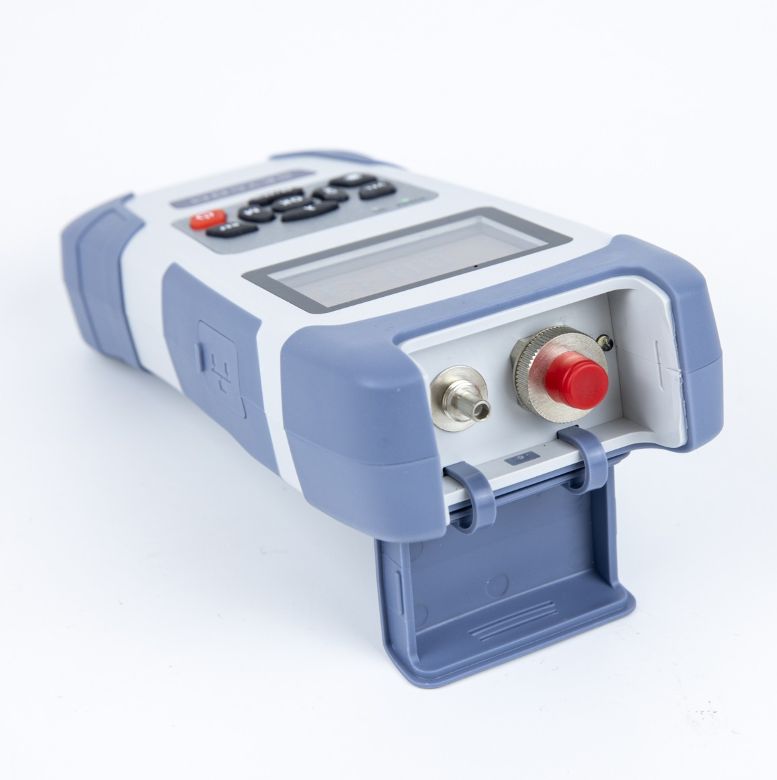

Fiber Connector | 2.5mm UPP and FC interchangeable (SC, ST optional) | ||
REF Set | YES | ||
Light source | |||
Output Wavelength (nm) | 1310 & 1550 | ||
Output Power | - 5dBm ±0.5dBm | ||
Laser Type | 850nm,1300nm,1310nm,1550nm@FP; 1490nm,1625nm@DFB | ||
Modulation Wave(Hz) | 270,1K,2K | ||
VFL | |||
Wavelength | 650nm ± 20nm | ||
Output Power * | > 10mW | ||
Test Distance ** | 8-10 km | ||
Other Items | |||
Auto Power Off | No operation in 10 minutes (can be canceled), Low battery energy | ||
Power Supply | 3*AA Battery/USB | ||
Net Test | RJ-45 | ||
Size | 174*82*38mm | ||
Weight | 150g | ||
