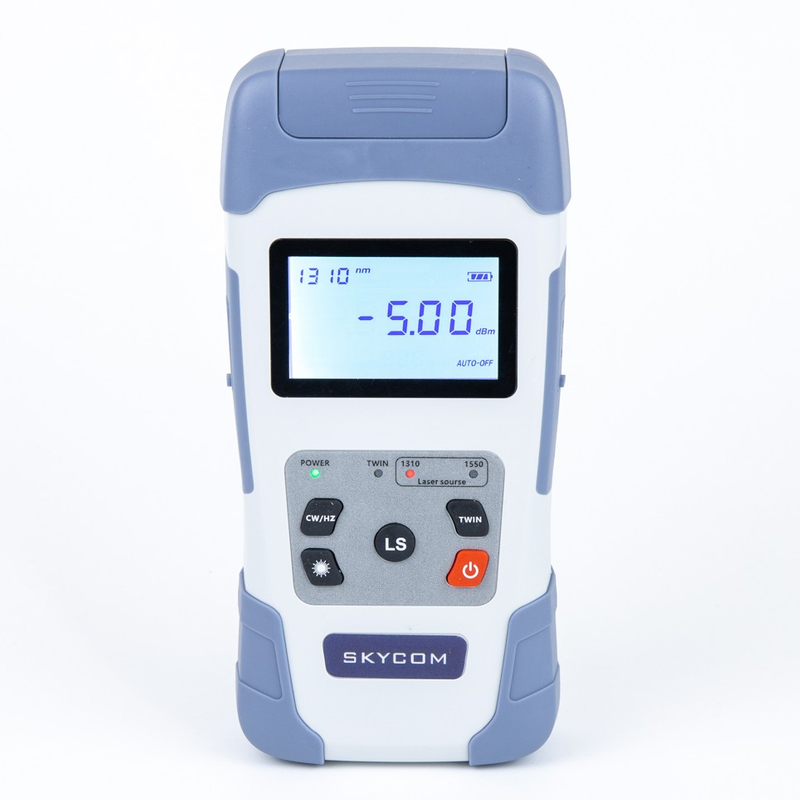

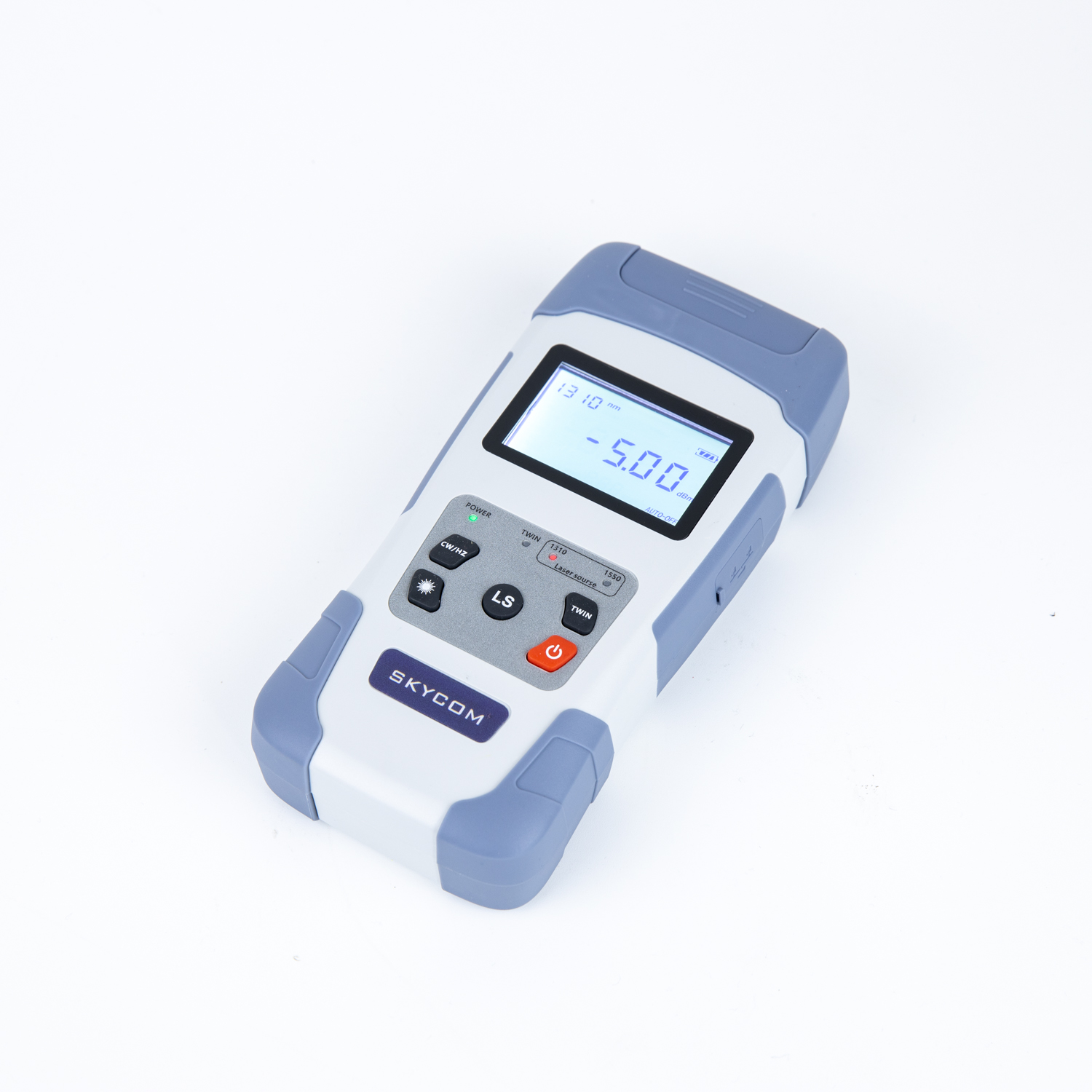

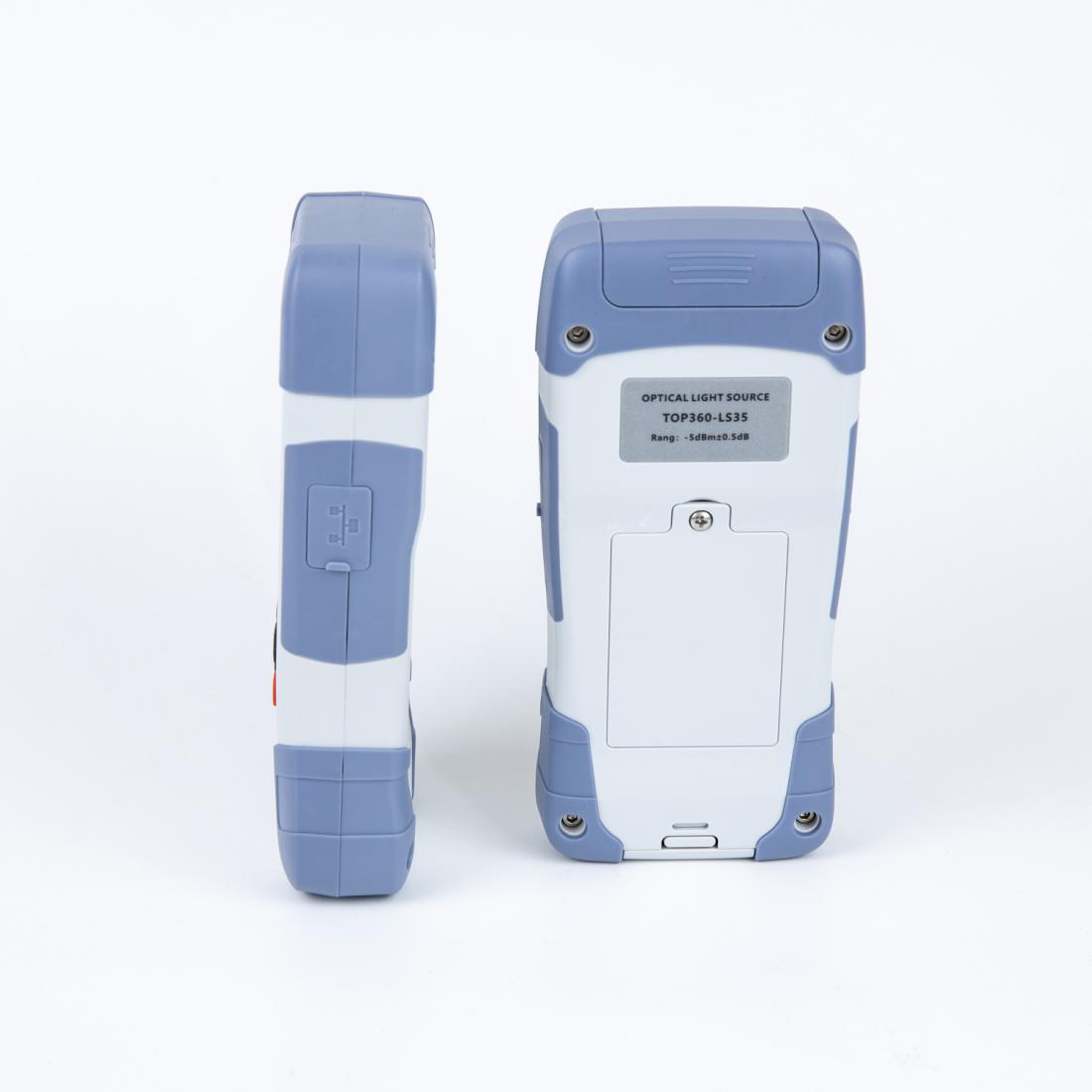

SKYCOM TOP360-LS35 optical light source

SKYCOM TOP360-LS35 optical light source

A stable light source is the foundation of accurate fiber testing.

SKYCOM TOP360-LS35 optical light source provides 1310/1550nm optic light,suitable for insertion loss testing of fiber optics or optical devices,covering both singlemode and multimode applications. Built with optical isolators for stable output, auto wavelength ID to eliminate manual errors, and selectable modulation for easy signal recognition, it ensures reliable measurements.

Lightweight, rugged, and field-ready.

Model:

TOP360-LS35

Brand:

SKYCOM

Features:
1~3 wavelengths output from one port

High stabilization, build in optic isolator

270, 1000, 2000Hz modulation wave

Auto wave ID output

Energy save mode

Overview

Accurate fiber testing starts with a stable source. The TOP360LS35 delivers 1310nm and 1550nm from one port,the two most trusted singlemode wavelengths,for precise insertion loss testing of fibers and optical devices.

Built with an optical isolator for driftfree output, auto wavelength ID to eliminate setup errors, and selectable modulation (270Hz, 1kHz, 2kHz) for clear signal recognition, it ensures reliable results in any environment.

Optional 650nm VFL (>10mW, visible up to 10km) instantly pinpoints breaks with the naked eye.

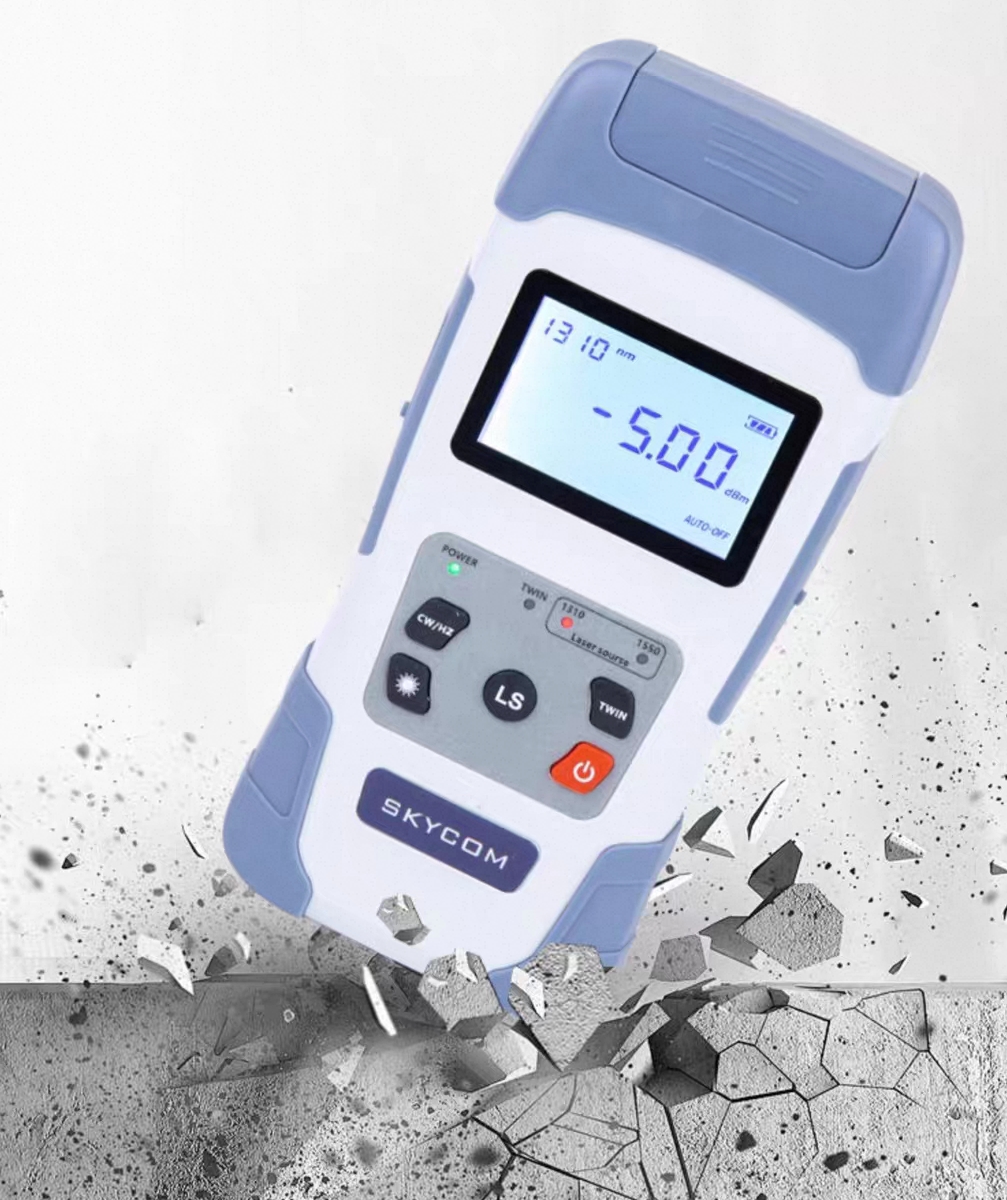

Soft Rubberized Housing .Soft rubber coating on the housing provides superior shock resistance and a non‑slip grip, protecting the instrument from drops and rough handling in the field.

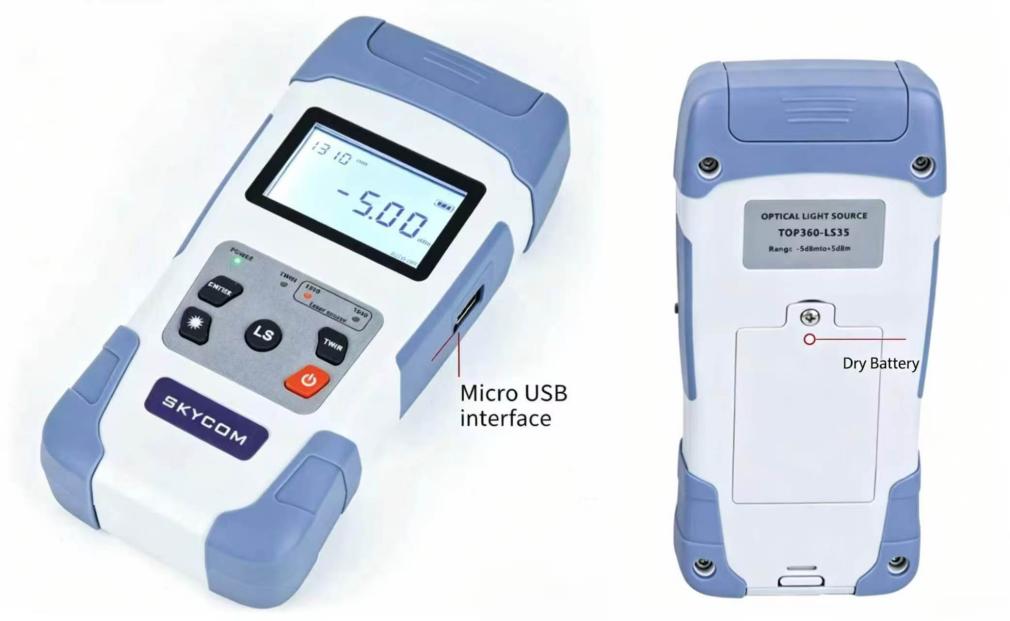

Dual Power Supply Modes . Built-in dry batteries (3×AA) and a Micro USB interface support dual power options for long‑hour continuous operation. Auto power off after 10 minutes (cancelable) saves battery.

Weighing just 150g and measuring 174×82×38mm, it's rugged, pocket‑sized, and field‑ready,ideal for FTTH deployment, telecom maintenance, and CATV verification.

Choose TOP360‑LS35. Test with confidence.

Main Features:

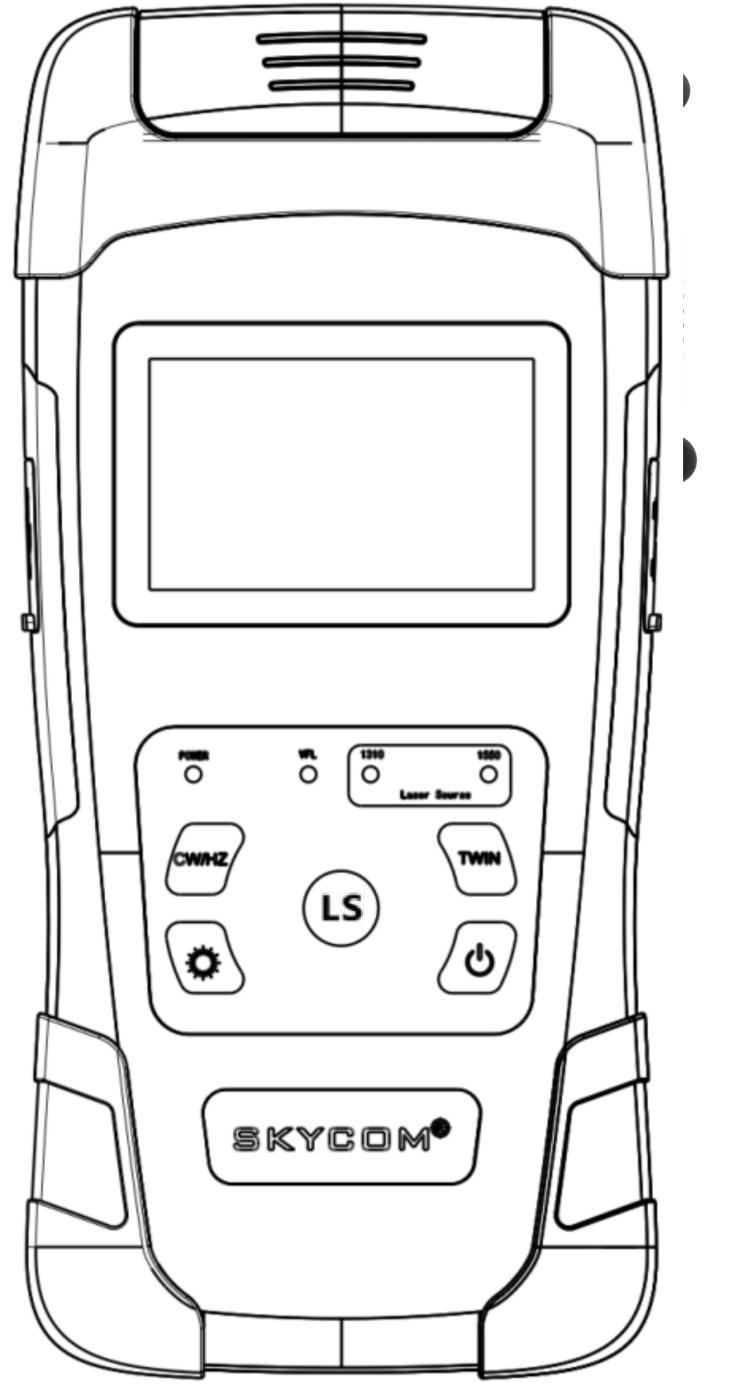

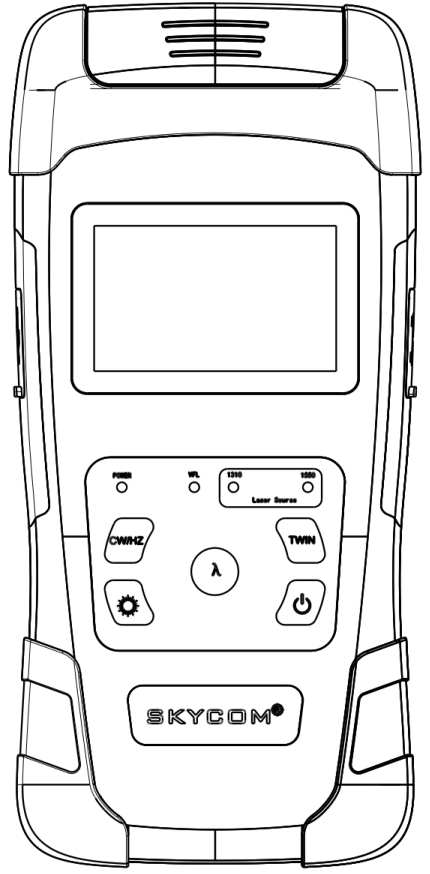

Menu commands:

Power button, in the case of power on, short press to toggle auto shutdown mode, long press >2 seconds, shut down. Auto shutdown mode: 10 minutes without operation will automatically shut down, You need to power on the system for a long time and press the power button shortly, turn off the AUTO-OFF function. The default is on at 1310 wavelengths.

Backlit button, short press to turn on the LED backlight, long press to turn on the flashlight function.

Frequency automatic recognition button, 270Hz-> 1kHz-> 2kHz-off, four state cycles, power of 10mW, working mode CW/2Hz.

Light source wavelength switching: 1310-> 1550 wavelength cycle switching, uncertainty: 0.2dB±1Nw, display accuracy 0.01dB.

The wavelength automatically recognizes the button, and the short press on -> off.

Micro USB charging port, network cable to transmit data

RJ45 socket , verify the on-off of the network cable
